Main functions

It can output 0～30000A current for a long time

The action time of the test equipment can be synchronized

Automatic identification of normally open and normally closed contacts

Several calibrations can be connected in series at the same time to improve work efficiency

III.Performance characteristics

Using beautiful and elegant PVC panel

Display the test value of primary current and secondary current directly, which is convenient for test observation and record.

High measurement accuracy 0.5 class

High power, small size and strong load capacity

Small size and light weight, the volume is only 30% to 70% of similar products, and it is very convenient to carry.

IV.Operation

（1）After the wiring is completed, check it again to see if there is any wiring error and whether the connectors are in good contact.

（2）During the test, if there is any abnormal phenomenon such as ignition and no display when starting up, immediately turn off the power and recheck the wiring.

（3）During the actual wiring, the current output terminal should form a loop, otherwise the instrument will not output current.

（4）The current riser has random output wires; the output external copper wires are selected according to 10A/mm2. (The standard configuration is two 1-meter test leads)

（5）The capacity of the equipment is designed for short-time work of 5 minutes.

V. Technical characteristics

1.Name and Classification

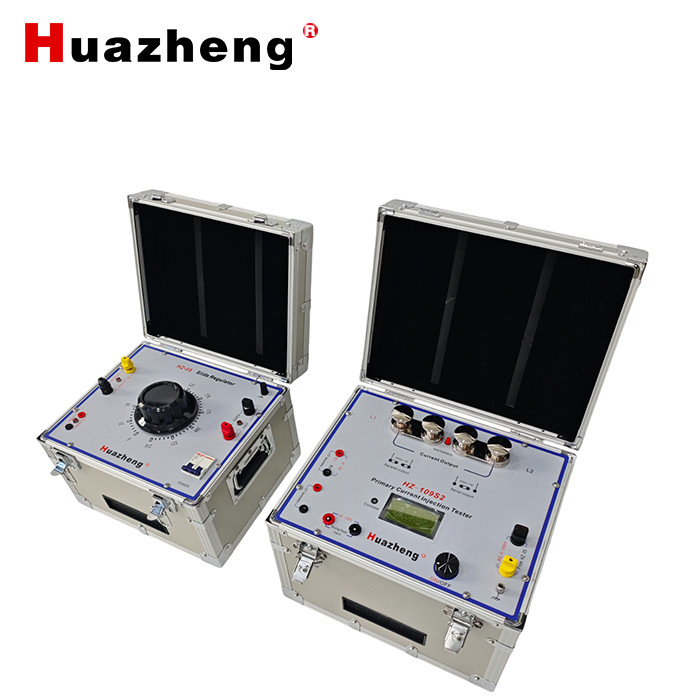

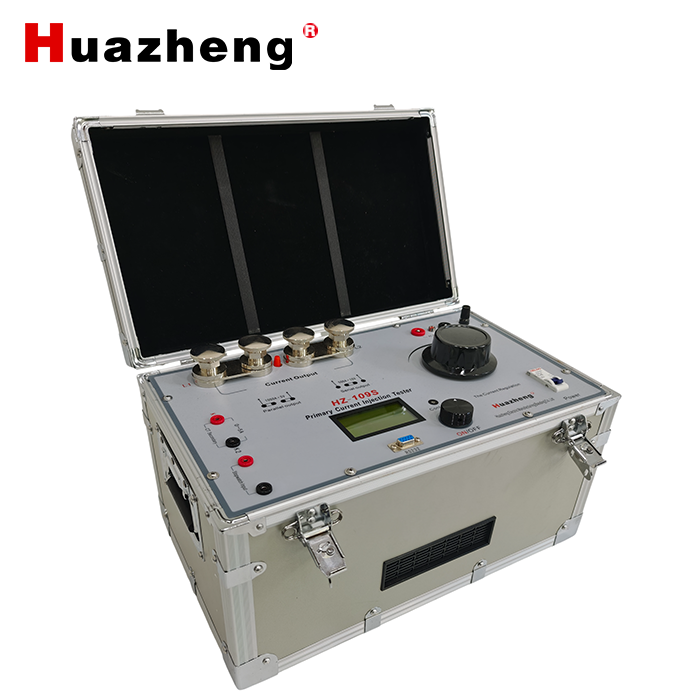

（1）Name: 30000A high current generator.

（2）Environmental category: It belongs to the Group III instruments in GB6587.1-86 "General Outline of Environmental Testing of Electronic Measuring Instruments" (can be used in outdoor environment).

（3）Input AC 50Hz, 380V.

（4）Output single-phase 0-30000A DC high current; the current can be adjusted smoothly and continuously, and the accuracy is higher than 0.5;

The output current is a standard sine wave with tiny burrs, which is better than thepower system requirement index standard, and the ripple coefficient is less than 0.3%.

（5）Output current mode: the true RMS value is continuously adjustable;

（6）Output waveform: standard sine wave;

（7）Output opening voltage: 6V.

（8）Current accuracy: each current can be adjusted smoothly and continuously, and the accuracy is higher than 0.5. The current and voltmeter display is a true effective value, with high accuracy and high stability;

（9）Current stability: 0.2%;

（10）Current waveform distortion: THD 1%;

（11）Protection settings: overcurrent, overvoltage;

（12）The current action time of the tested element can be measured, and the locking action time can be recorded synchronously. Normally open and normally closed contacts are automatically discriminated.

（13）Time measurement range: 0.0 01S---9999.999S, accuracy: 0.001S

（14）Power: 180KVA
