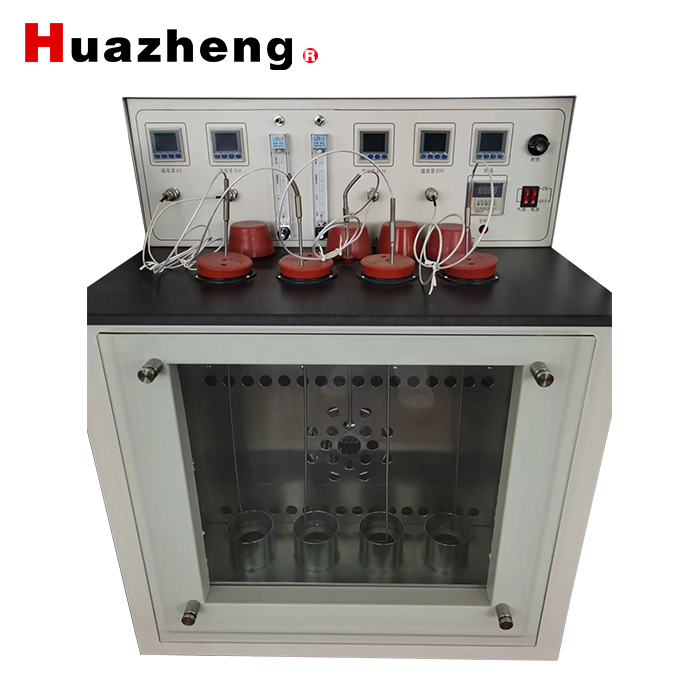

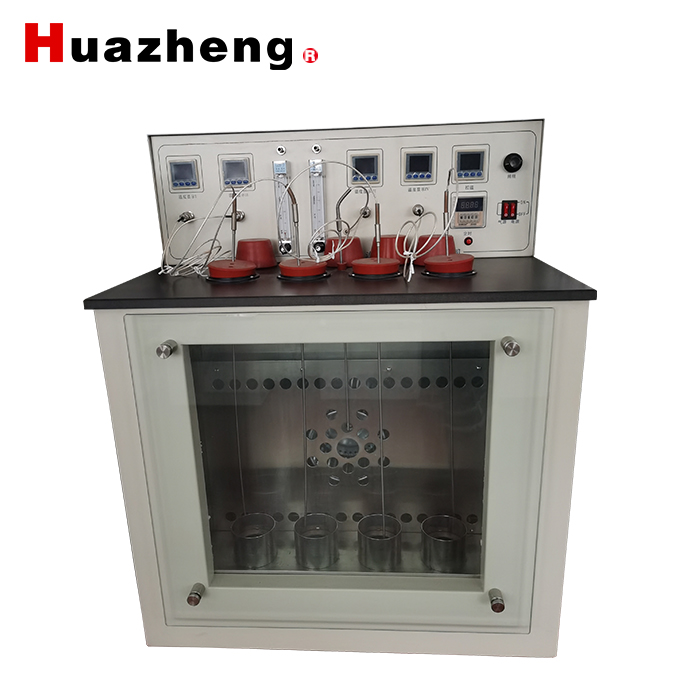

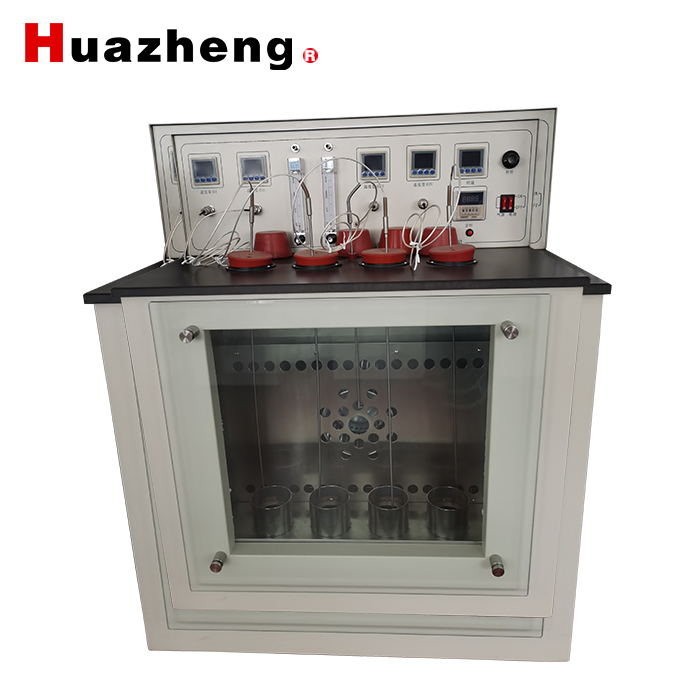

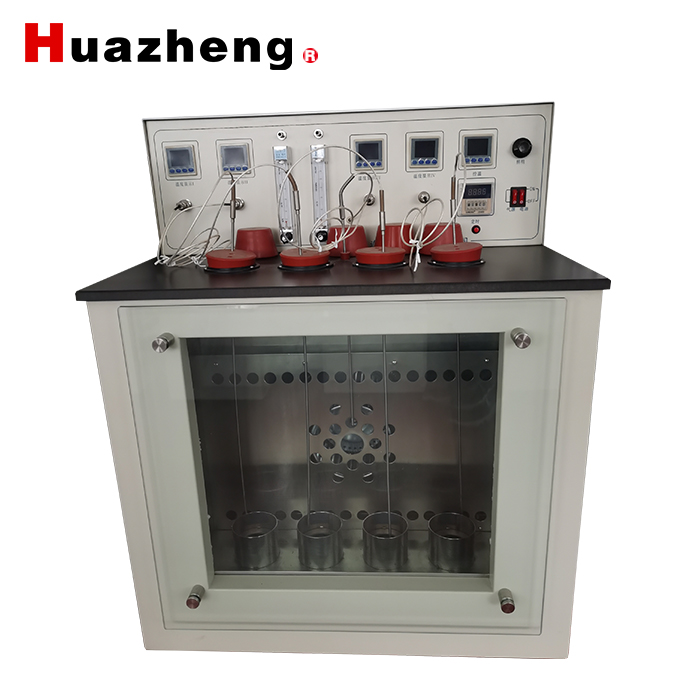

Huazheng Electric HZPM-1 Lubricating Oil High Temperature Foam Characteristics Tester  ASTM D6082 High Temperature Foaming Characteristics Test Apparatus
Huazheng Electric HZPM-1 Lubricating Oil High Temperature Foam Characteristics Tester ASTM D6082 High Temperature Foaming Characteristics Test Apparatus
Contact us
Huazheng Electric HZPM-1 Lubricating Oil High Temperature Foam Characteristics Tester  ASTM D6082 High Temperature Foaming Characteristics Test Apparatus
Huazheng Electric HZPM-1 Lubricating Oil High Temperature Foam Characteristics Tester  ASTM D6082 High Temperature Foaming Characteristics Test Apparatus
Huazheng Electric HZPM-1 Lubricating Oil High Temperature Foam Characteristics Tester  ASTM D6082 High Temperature Foaming Characteristics Test Apparatus
Huazheng Electric HZPM-1 Lubricating Oil High Temperature Foam Characteristics Tester  ASTM D6082 High Temperature Foaming Characteristics Test Apparatus

I.Applicable standard

SH/T 0722  ASTM D6082

II.Performance characteristics

This instrument is suitable for measuring the foam characteristics of lubricating oil (especially transmission fluid and engine oil) at 150 °C. The instrument adopts the advanced PID self-tuning temperature control system, the control performance is stable and reliable, the user only needs to set the temperature control point temperature through the instrument, the instrument automatically realizes the fixed point temperature control, digital display, accurate temperature control, and the accuracy can reach ±0.2℃. Air bath heating, safe and environmentally friendly. High temperature resistant quartz glass measuring cylinder, safe and reliable. Powerful circulating fan ensures the balance of temperature control. A lighting lamp with adjustable brightness is installed in the bath, which is convenient for experimental observation. Each group of tests is independently temperature controlled to ensure the accuracy of the test temperature. Equipped with stainless steel diffuser head imported from the United States. No oil-feeding air pump to ensure airflow supply. With timing alarm device.

III.Technical indicators

Input power: AC220V±10%  50Hz

Heating power: <2.5KW

Air bath temperature: 150±1.0℃

Oil sample temperature: 150±1.0℃

Air flow rate: 200±5ml/min

Number of test holes: 4 holes

Diffusion head permeability3000~6000 ml/min

IV.configure

NO

Name

Quantity

1

Lubricating oil high temperature foam characteristic tester

1

2

Thermometer 98℃152℃

1

3

Quartz glass graduated cylinder 1000ml

4

4

sealant stopper

4

5

Sealant plug (three holes)

4

6

Temperature Sensor

4

7

Measuring cylinder positioning sleeve

4

8

Air metal diffuser head (import)

2

9

Diffuser connecting rod

2

10

Silicone tube

3m

11

air filter

1

12

air pump

1

13

Power cords and sockets

1

14

Manual, certificate

1 for each
