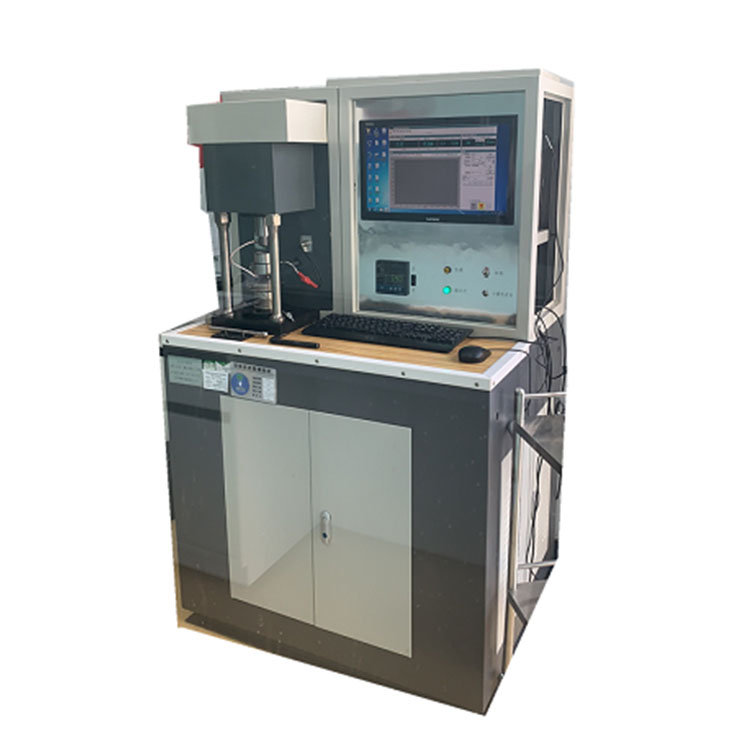

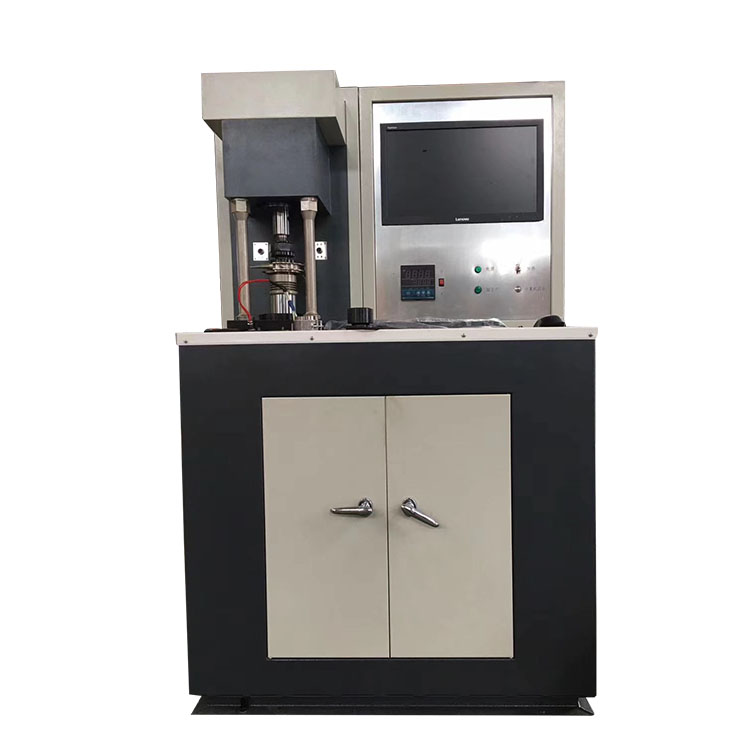

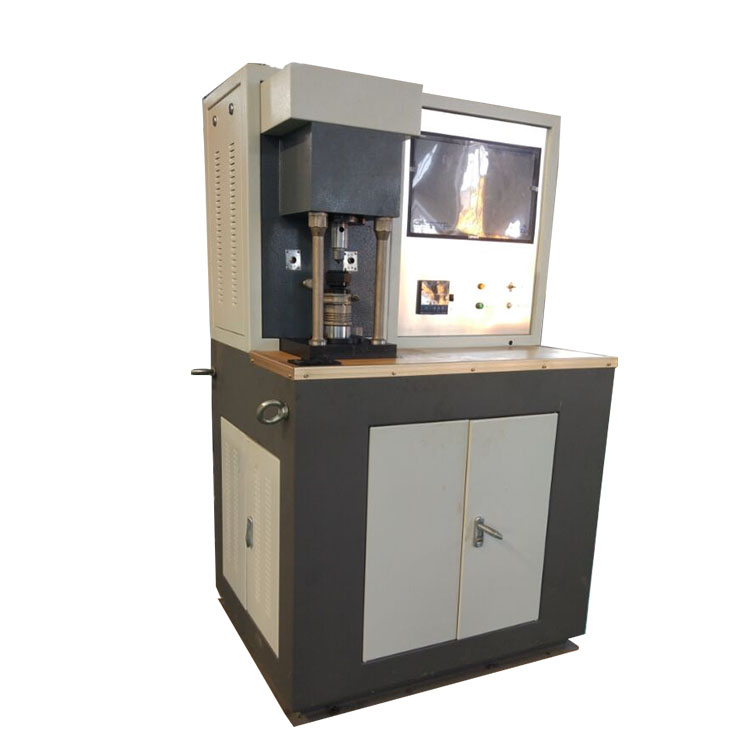

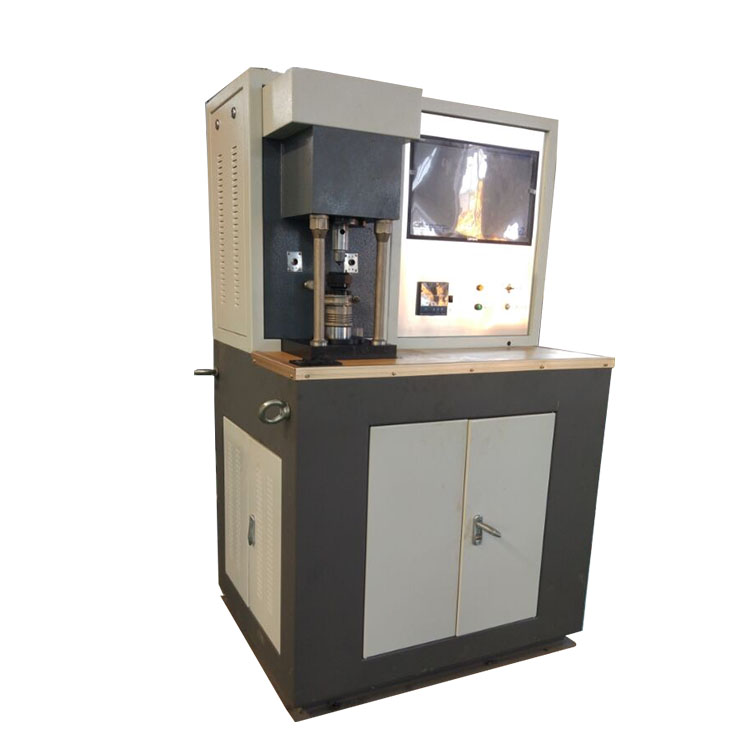

Huazheng Electric HZKM-4 Lubricant anti-wear tester (four-ball machine)-oil lubricity friction tester-Huazheng Electric Manufacturing (Baoding) Co., Ltd-

I.Overview

The lubricant anti-wear tester is in the form of sliding friction and is mainly used to evaluate the bearing capacity of lubricants under extremely high point contact pressure conditions. Including the maximum non-seizure load Pb, sintering load Pd, comprehensive wear value ZMZ and other three indicators, in practical applications, different evaluation indicators can be selected according to various uses of the lubricant. The four-ball friction tester can also do long-term anti-wear test of lubricants, measure friction coefficient, record friction force and temperature curve. Using special accessories, it is also possible to carry out simulation tests of end wear and materials. The design principle of the machine is based on the loading stability of the lever four-ball machine, combined with the loading characteristics of the servo valve, through the servo motor, air spring, closed-loop control software to achieve automatic reset, automatic loading, automatic maintenance, automatic test, automatic unloading, automatic Measure the diameter of the wear spot and take a picture, one-key operation, one-key data storage, fast test speed, minimal error, good repeatability, no pollution, no noise, and high efficiency.

Test items

Mainly used to evaluate the load-carrying capacity of lubricants

Simple technical features or parameters

Through servo motor, air spring, closed-loop control software, automatic reset, automatic loading, automatic holding, automatic testing, automatic unloading, automatic measurement of wear scar diameter and taking pictures are realized, one-key operation, one-key data storage, fast test speed and error Very small, good repeatability, no pollution, no noise, high efficiency.

GB/T12583-98, Determination of extreme pressure properties of lubricants (four-ball machine method)

GB3142-82, Determination of the bearing capacity of lubricants (four-ball method)

SH/T0189-92, Determination of anti-wear properties of lubricating oil (four-ball machine method)

SH/T0202-92, Determination of extreme pressure properties of grease (four-ball machine method)

SH/T0204-92, Determination of anti-wear properties of lubricating grease (four-ball machine method)

ZBE34007-87 (Four-ball anti-wear test method)

II.Technical parameters

NO	Project name	Technical indicators
1	Test force
1.1	Axial test force working range	10～10000N
1.2	Relative error of test force indication	±1％
1.3	Automatically maintain the indication error when the test force is long	±1％F.S
2	Friction torque
2.1	Friction torque measuring range	0～13500N.mm
2.2	Relative error of friction torque indication	±3％
3	Spindle speed
3.1	Spindle frequency conversion speed regulation range	10～2000r/min
3.2	Spindle speed error	±5r/min
4	Oil tank stroke	＞45mm
5	Spindle bore taper	1：7
6	Testing machine heating system
6.1	Heater operating temperature range	Room temperature ～250℃
6.2	Temperature control accuracy	≤2℃
7	Testing Machine Spindle Control
7.1	Testing machine time display and control range	1～99999s or 1-99999min
7.2	Testing machine revolution display and control range	999999999
7.3	The maximum torque output of the main motor of the testing machine	2.3N.m
8	Amount of oil used in one test	About 10ml
9	Special standard steel ball diameter	Ф12.7
10	Dimensions of the testing machine (length × width × height mm)	About 1160×750×1640
11	Testing machine net weight	About 400kg
12	Testing machine rated power	5.5KW

III. Packing list

Category	NO.	Name	Quantity
Product	1	Host	1
	2	Computer (LCD Monitor)	1
	3	Printer	1
	4	15J Wear Spot Measurement Microscope	1
Appendix	1	High temperature wear auxiliary oil box	1
	2	Normal temperature friction pair oil box	1
	3	Four-ball special steel ball	1
	4	Oil slinger (high/low temperature)	1 for each
	5	Spring collet	2
	6	Torque wheel	1
Tool	1	Lifting screw	4
	2	Anti-vibration horn	4
	3	Medical Tweezers (Medium)	1
	4	Medium waist plate	1
	5	Oil tank wrench (high/low temperature)	1 for each
	6	Tool	1
	7	Collet chuck wrench	1
	8	Collet hammer	1
