I.Description

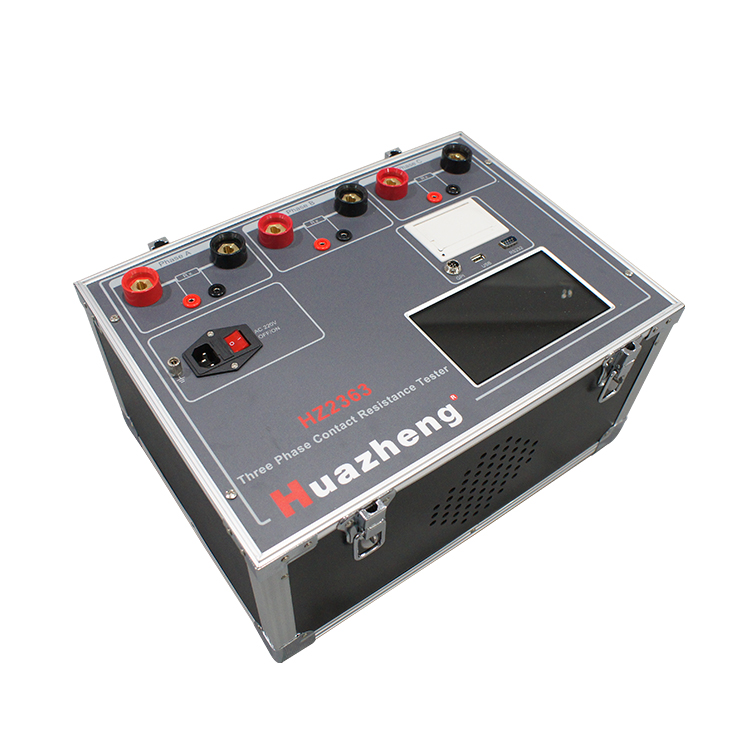

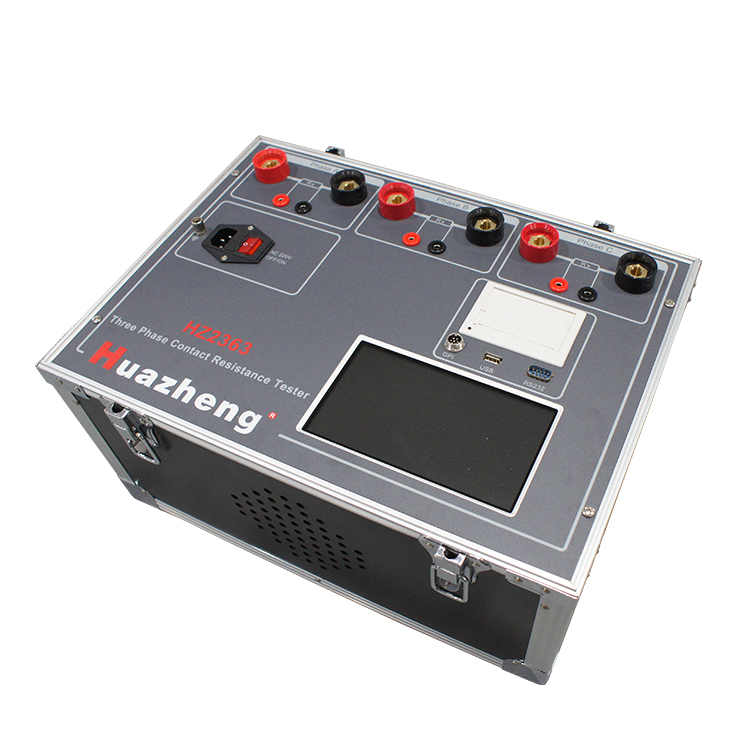

HZ2363 Three Phase Contact Resistance Tester is made and contained of advanced high-power switching power supply technology and advanced electronic circuit. It is the dedicated tester for the resistance of high and low switch, cable wire and welding joint. Its current uses national standard GB736 recommended standard DC, can measure the resistance value of being tested object under standard current status. The tester is small dimension, light weight, strong anti-interference, high precision, easy operation and perfect function protection and so on.

II.Technical Parameters

Selection	100A	200A	300A	400A	500A	600A	10-5000A
Measurement range	20A 50A 100A customized	20A 50A 100A 150A 200A customized	20A 50A 100A 150A 200A 300A customized	20A 50A 100A 150A 200A 300A 400A customized	20A 50A 100A 150A 200A 300A 400A 500A customized	20A 50A 100A 150A 200A 300A 400A 500A 600A customized	Current customized 1, two-phase 2, three-phase
Test range	0~19999mW expandable
Test precision	0.5%rdg±10dgt
Resolution	0.01mW
Working power	AC 220V±10% 50Hz±2%
Length(mm)	450	450
Width(mm)	250	250
Height(mm)	220	280
Weight(Kg)	9.9	12.9
Environment temperature	-25°C ~50°C
RH	£90%RH

Huazheng Three-Phase Contact Resistance Tester Electric Loop Circuit Breaker with 1-Year Warranty
