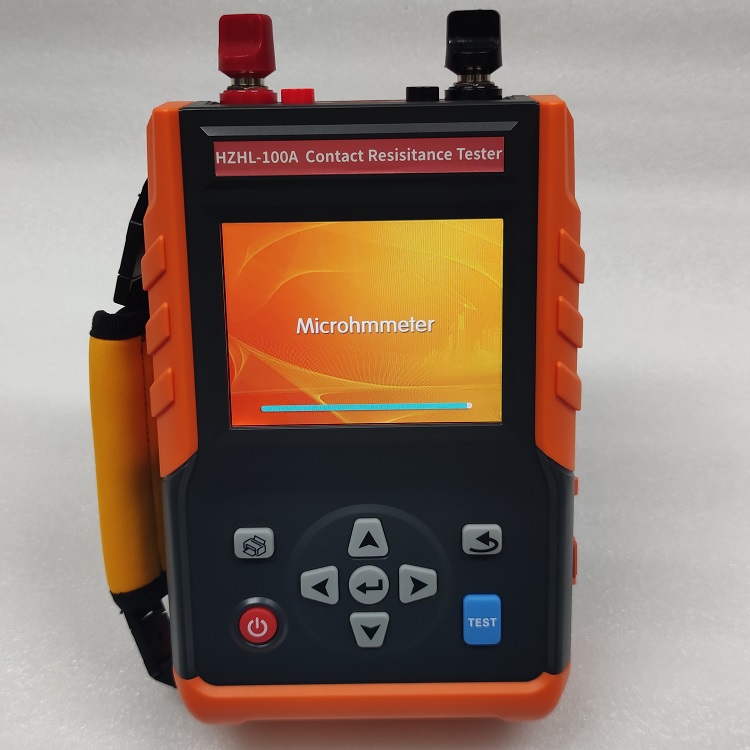

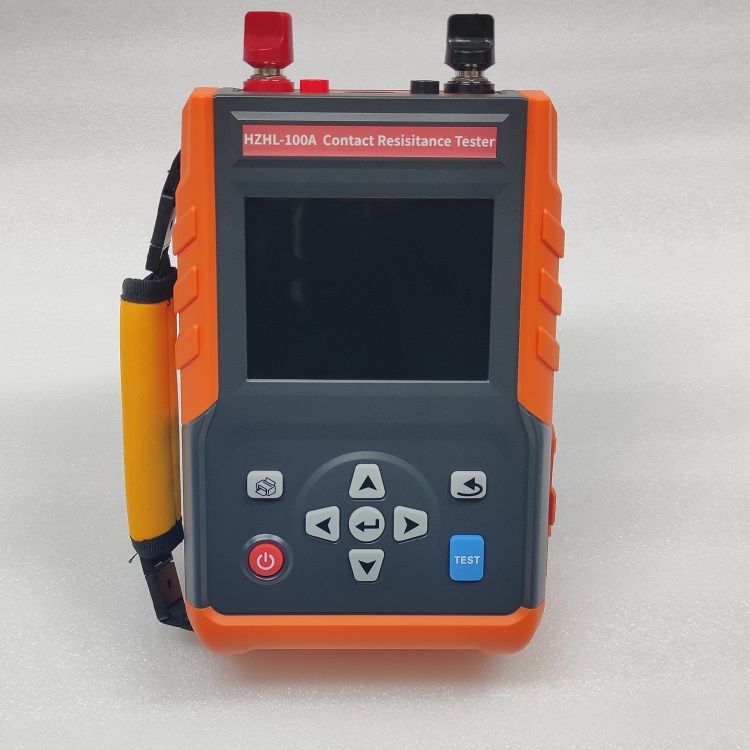

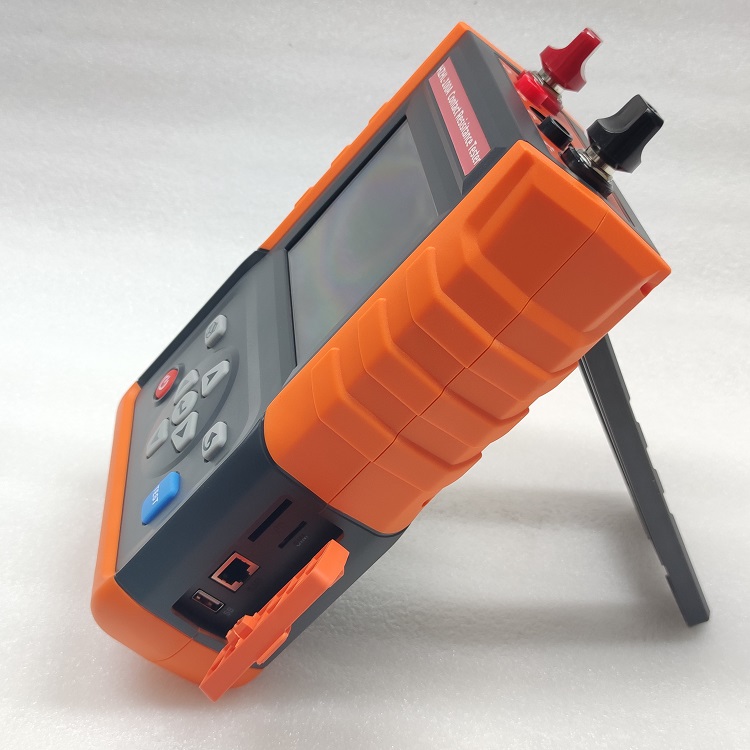

I. Technical specifications

Source

Built-in: 12.6V 9000mAh rechargeable lithium battery

 Test mode

Four line method

Charger

12.6V/2A charger

Display mode

5.6-inch industrial grade high brightness color LCD screen

Test interface

I + (positive current), I- (negative current), U + (positive voltage), U- (negative voltage)

Current output

Rough shift position:≤5A,10A,30A,50A,80A,100A

Thin strip gear:Step value 2.5A, up to 59 current

Range

(internal battery)

≤5A  :

1μΩ~3500mΩ

10A  :

0.1μΩ~200mΩ

30A:

0.1μΩ~20mΩ

50A:

0.01μΩ~15mΩ

80A:

0.01μΩ~10mΩ

100A:

0.01μΩ~5mΩ

 Minimum resolution

0.01μΩ

Test accuracy

Current: 30A~100A ± (read 0.1% + range 0.2% + 1 μΩ)

Current: 10A or 5A ± (read 0.5% + range 0.2% + 10 μΩ)

 Testing time

Quick (recommended),10s,20s,30s,40s,50s,60s

Printer

Yes (optional), press the print key to print the test results

Data storage

After the test, the data is automatically saved, storing 999 sets of data

Instrument size

About 188mm (long) 85mm (W) 312mm (high)

Packaging size

Approximately 550mm (long) 420mm (W) 215mm (height)

Quality

Instrument quality: about 2.2kg

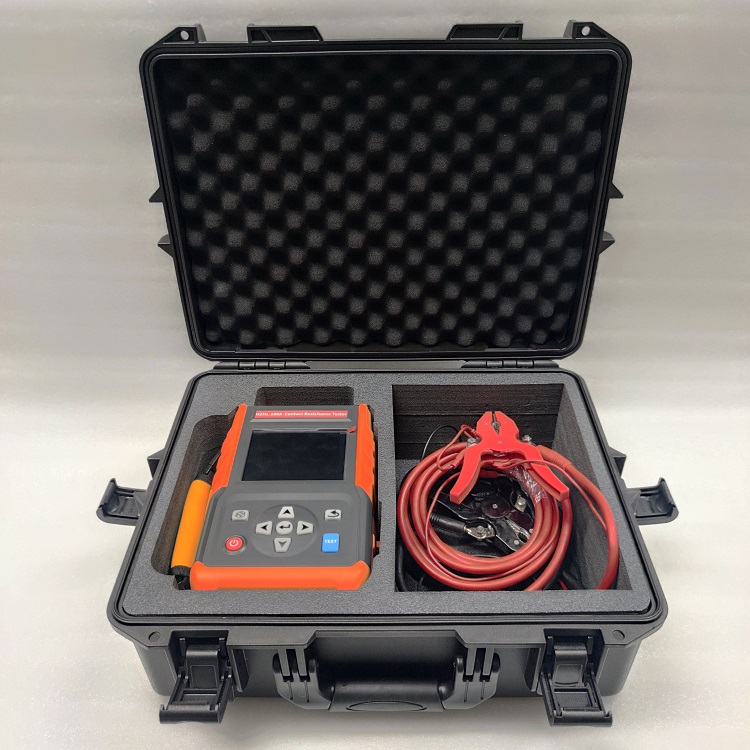

P-wire

Standard length: 3m (5m available)

Current and voltage ends split test line, simple wiring, resistance less than 10m Ω

Data Removal

Select the format memory option to delete all data

Data access

Enter the data access interface, press the up and down the left and right keys to read the stored data

Data export

Bluetooth connection, Android APP export, export file is Excel

Cloud services

Android APP, Bluetooth connection; upload field pictures, upload test data, generate test report, generate data curve, test device sharing, data viewing at the same time

Auto shut off

When using the battery power supply, it will automatically shut down after about 15 minutes of no operation after starting up

Battery voltage

There is a battery power indication in the upper right corner of the instrument. When the symbol "" is displayed, then the battery power is exhausted, and the instrument will be automatically shut down. Please charge in time

Backlight

Backlight can be set to high, medium and low brightness

Working current

The operating current in the non-test state is 230 mA

The operating current can be set itself in the test state

Circuit protection

With open-circuit protection, overheating protection, etc

Temperature protection

Temperature monitoring is equipped in the instrument

Working temperature and humidity

-10℃ ~50℃; below 90% RH, no condensation

Store temperature and humidity

-10℃ ~60℃; below 70% RH

Charging voltage

12.6V

Suitable for safety regulations

IEC61010-1, CAT Ⅲ 600V, Pollution Grade 2, JJG724-1991 Verification Procedure for DC Digital Ohms Table, JJG166-1993 Verification Procedure for DC Resistor, DL / T967-2005 Verification Procedure for Circuit Resistance Tester and DC Resistance Rapid Tester
