I. Advantages And Characteristics

1.1. The system adopts an integrated design, making it easy and flexible to move.

1.2. Applicable to testing various main insulation faults of 380V-220kV power cables.

1.3. Highly integrated fault testing, high-voltage power supply, insulation resistance testing, cable path testing, and other functions.

1.4. The fault testing unit adopts an industrial embedded computer platform and Linux operating system.

1.5. The high-frequency and high-voltage power supply unit adopts an optoelectronic mouse control system, reflecting human-computer interaction, convenient operation, and simple and intuitive display.

1.6. The insulation resistance testing unit is digital, and the LCD display screen can display the instrument's working status and test results.

1.7. The LCD display screen of the cable path testing unit can display the transmitter, received signal frequency, and signal strength.

1.8. The system is equipped with a 25m testing line, which facilitates cable fault testing in remote, close range, and complex environments.

II. Brief Introduction

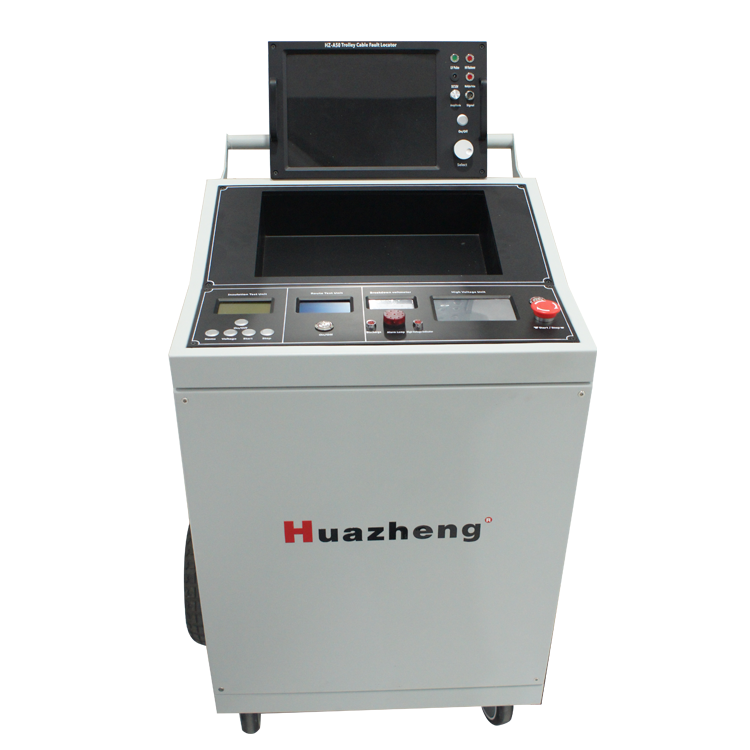

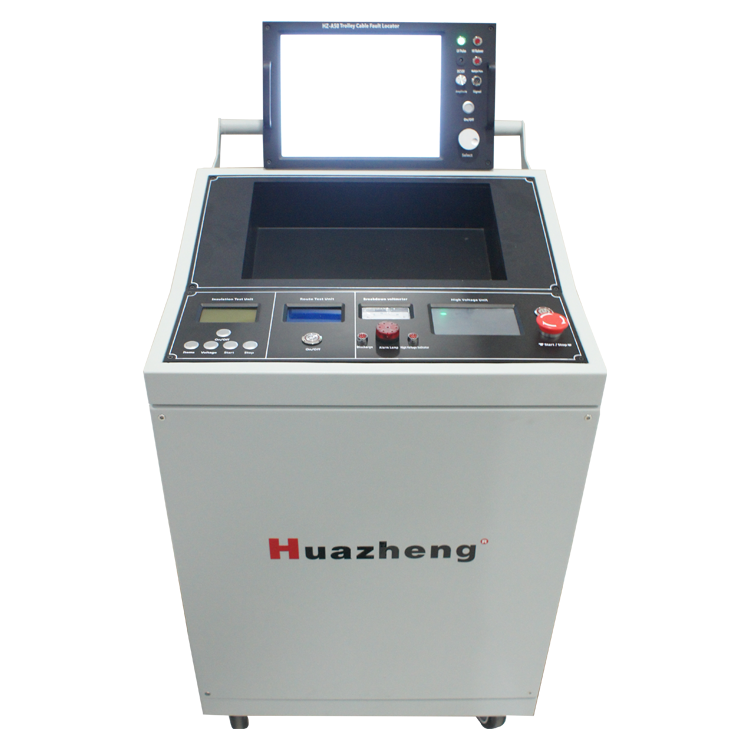

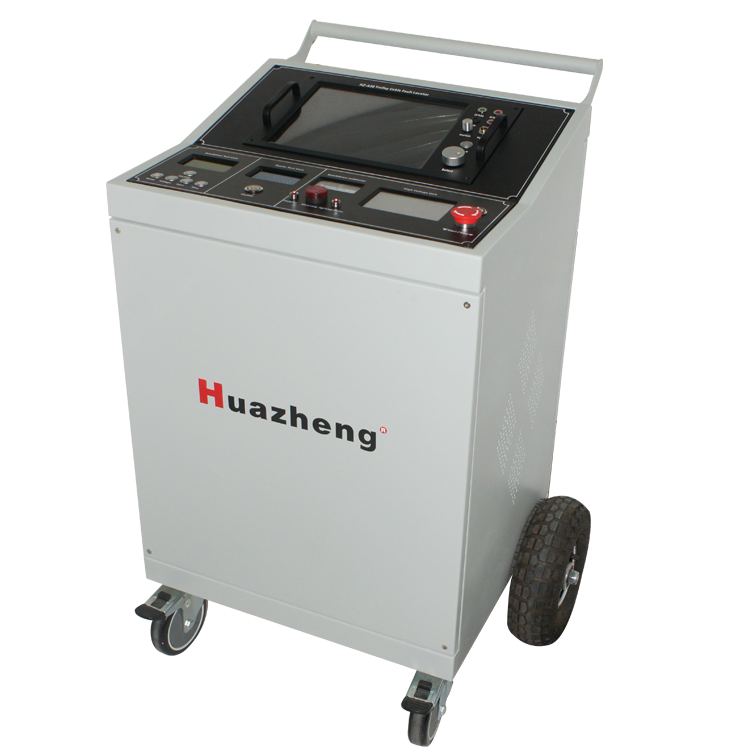

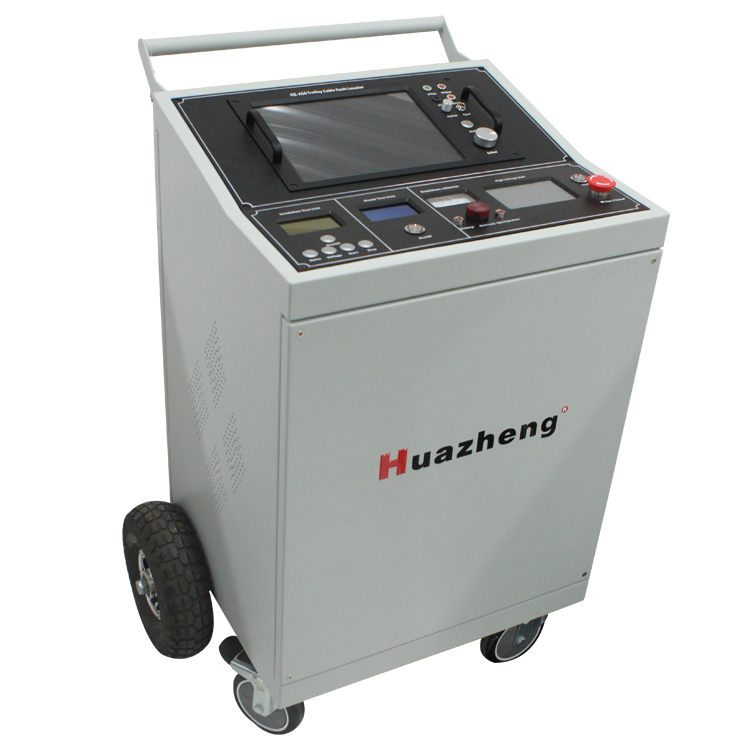

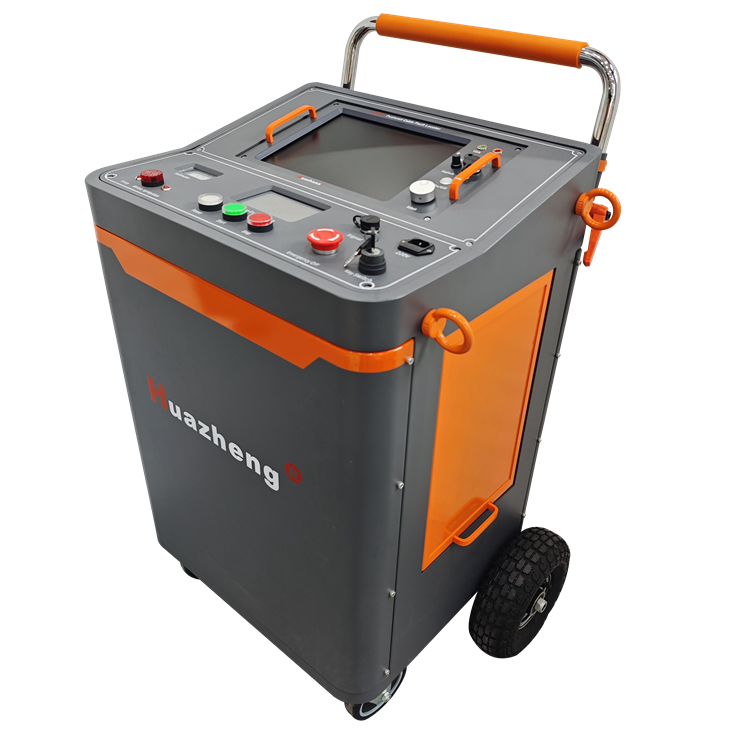

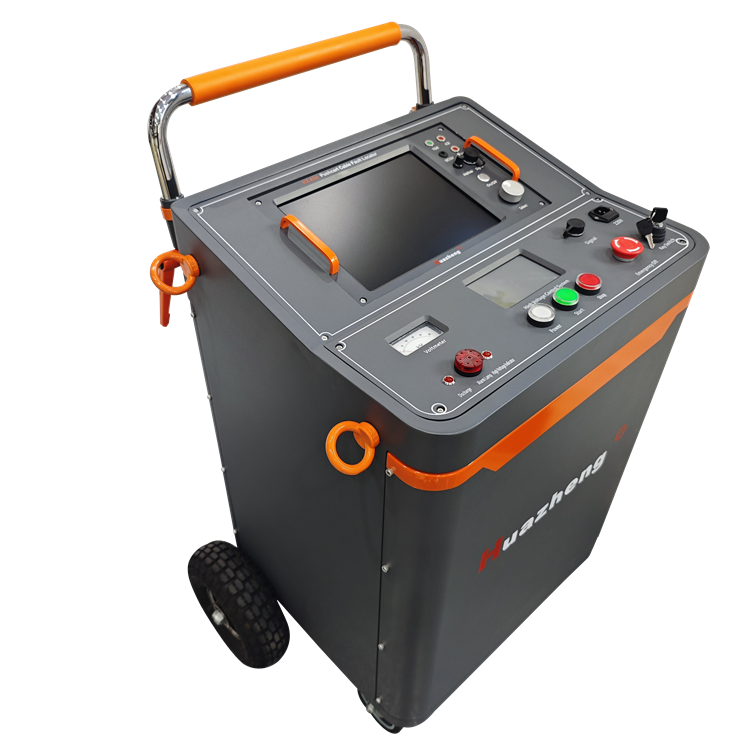

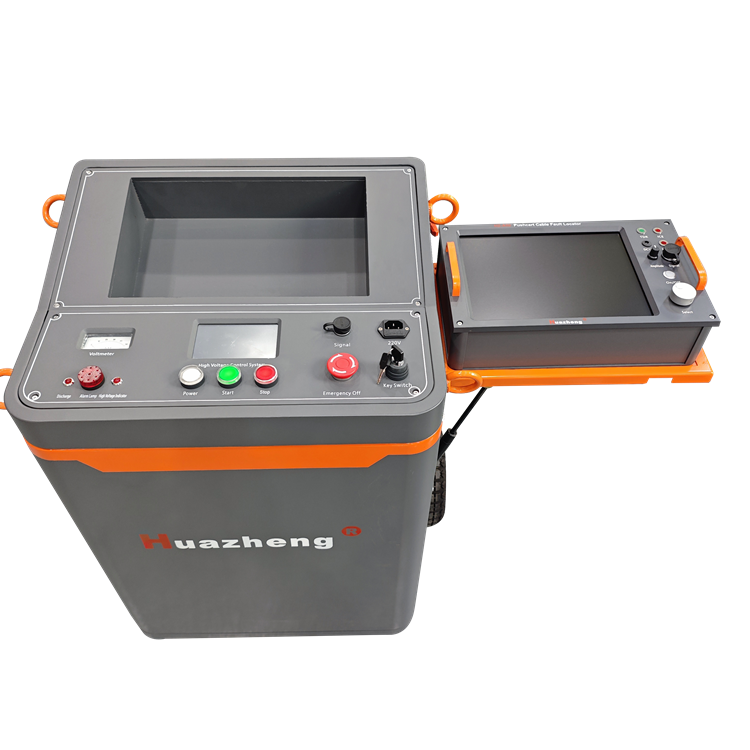

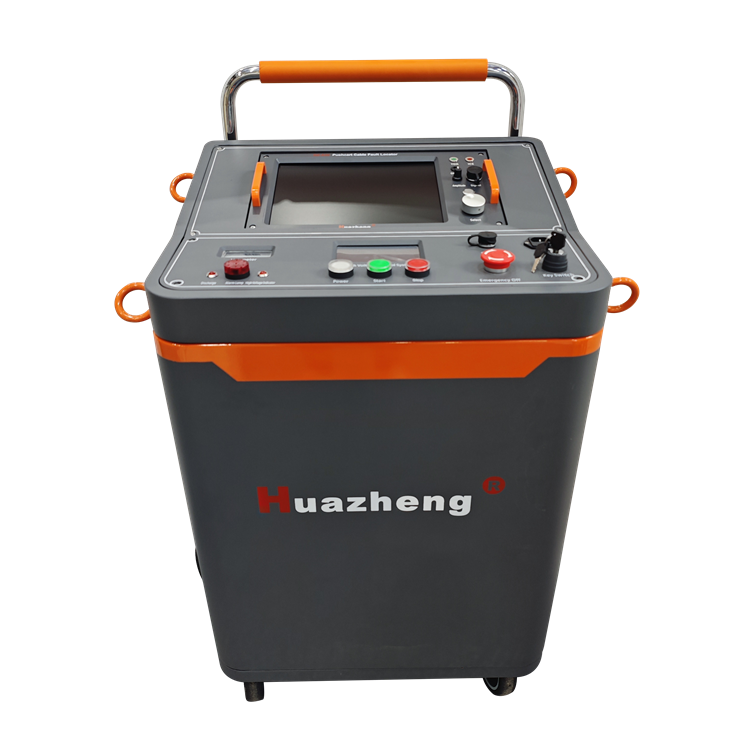

The HP-A50 trolley type cable fault tester is a cable fault testing system that our company has been committed to in the field of power cable fault testing for a long time. In order to meet the rapid development of the power industry, combined with various experiences and dedicated research, we highly integrate traditional and independent cable fault testers, integrated high-frequency and high-voltage power supplies, multiple pulse generators, path transmitters, insulation resistance testers, and other independent units into one. This system is used for rough testing and path finding of various faults in power cables, as well as precise fault location. The testing software automatically recognizes the card position and reads the fault distance, truly making the testing of cable faults lightweight, simple, efficient, and safe. Provide convenience for rapid testing of power cable faults.

III. Functional Characteristics

3.1、Fault testing unit

3.1.1. It adopts a 12.1-inch large screen, controlled by a knob and mouse, with a bright LCD display, suitable for outdoor use in sunlight. The distance measurement part of the host is powered by lithium batteries, which is convenient for on-site testing and has extremely strong stability.

3.1.2. Adopting the latest integrated communication technology, the collected signal is stable, and the host can automatically select six sampling frequencies with a minimum of 6.25MHz and a maximum of 200MHz. The adaptive pulse width can meet the testing requirements of cables of different lengths, reduce prediction errors, and improve testing accuracy.

3.1.3. The software realizes automatic recognition and search of low-voltage pulse and multiple pulse wave heads, automatic positioning of waveform fault inflection points, automatic reading and display of fault distance, displaying waveforms in three zones on the same screen, and randomly displaying ten measured waveforms for selection on the same screen. At the same time, it realizes two modes of automatic and manual processing, enabling dual positioning operation of waveforms. The double cursor movement can be accurate to 0.15 meters, improving testing accuracy and reducing waveform errors.

3.1.4. Built in measured waveforms and test physical wiring diagrams are convenient for on-site testing comparison and daily learning, and can automatically generate test reports and print them, which can be kept as cable operation and maintenance records.

3.2、High frequency and high voltage power supply unit

3.2.1. Integrated design with built-in capacitors.

3.2.2. Touch screen human-machine interaction, simple setting operation, and intuitive and convenient instrument status display.

3.2.3. It has voltage regulation, automatic voltage regulation, and automatic protection functions.

3.2.4. The output high voltage has both single pulse and continuous pulse functions, and can be used in conjunction with a fault tester and a fixed-point instrument to locate the fault point.

3.2.5. High voltage output with DC output, capable of working with external ball gaps and diverse applications.

3.2.6. Software controlled vacuum impact ignition discharge, adaptive discharge, and pulse cycle.

3.2.7. Equipped with emergency stop button and automatic discharge function, it can automatically reduce voltage and discharge during emergency stop or shutdown, ensuring safety and reliability.

The continuous working time shall not be less than 6 hours, meeting the longest working time for cable fault testing.

3.3、Path testing unit

3.3.1. The transmitter is highly integrated within the system.

3.3.2. The receiver is small in size and lightweight, making it easy to carry and track.

3.3.3. Determine the cable path based on the size of the receiver speaker sound and display signal strength bars.

3.4、Insulation resistance testing unit

3.4.1. The unit is digital, and the LCD display screen can display the instrument's working status and test results.

3.4.2. The instrument has a power on self-test function and automatic calibration function.

3.4.3. The instrument sampling is displayed in full Chinese and can automatically measure absorption ratio, polarization index, and insulation resistance.

3.4.4. Adopting digital filtering technology with strong anti-interference ability.

3.4.5. Adopting a 2600mAh large capacity rechargeable lithium battery pack.

3.4.6. It has functions such as overload, automatic discharge, and short circuit protection.

IV. Technical Parameter

4.1 Trolley parameters

4.1.1 External dimensions: 530 (L) * 430 (W) * 960 (H) mm

4.1.2. Weight: 50kg

4.1.3. Input power supply: AC220V, 50Hz

4.1.4. Charging adapter: DC12V, DC16.8V

4.2、Fault testing unit：

4.2.1 High integration, low power consumption, integrated design, high stability.

4.2.2. It can test various faults of power cables with different voltage levels, cross-sections, media, and materials below 220kV, including open circuit, short circuit, low resistance, high resistance leakage, and high resistance flashover faults.

4.2.3. It can also be used to test various faults in railway communication control cables, street light cables, airport signals, and mining power cables.

4.2.4. The speed of radio wave propagation in any cable with known measurable length.

4.2.5. Display method: 12.1-inch industrial grade LCD screen (Linux operating system).

4.2.6. Storage space: 4G electronic disk.

4.2.7. Testing methods: Low voltage pulse method, lightning current method, multiple pulse method.

4.2.8. Operation method: Knob mouse operation.

4.2.9. Testing distance: not less than 50km.

4.2.10. Minimum testing distance (blind spot): 5 meters.

4.2.11. Precision positioning error: ± 0.2m.

4.2.12. Testing error: The system error is less than ± 1%.

4.2.13. Multiple pulse generator: impulse voltage ≤ 40kV.

4.2.14. Resolution: v/f m; V is the wave propagation velocity m/ μ S; Software cursor 0.10 meters.

4.2.15. Sampling frequency: 200MHz, 100MHz, 50MHz, 25MHz, 12.5MHz, 6.25MHz.

4.2.16. Pulse width: 100ns, 200ns, 500ns, 1 μ s. 2 μ s. 5 μ S (software automatic matching).

4.2.17. Power supply and power consumption: AC220V ± 10%, not exceeding 15W; DC12V (7AH) shall not exceed 20W.

Standby time: can be used continuously for about 6 hours.

4.3、High frequency and high voltage power supply unit:

This product is mainly used for sampling impulse discharge of high resistance fault waveforms during fault testing of power cables with a voltage of 32kV and below, and for precise determination of fault points during impulse discharge.

4.3.1 Output methods: pulse output, DC output

4.3.2. Output voltage: negative pressure, ≤ 32kV

4.3.3. Working mode: single pulse, continuous pulse, DC output

4.3.4. Built in capacitor: 4uF/32kV

4.3.5. Discharge energy: ≤ 2048J

4.3.6. Pulse period: 3s to 8s adaptive

4.3.7 Automatic discharge: Automatic discharge upon shutdown

4.3.8. Working power supply: Power frequency 220V ± 10%

4.3.9. Display screen: 800 × 480 resolution touch screen display

4.4、Path testing unit:

4.4.1 Detection distance: 5km

4.4.2 Detection depth: 3m

4.4.3. Routing error: 5cm

4.4.4 Basic transmitter parameters:

4.4.4.1 Output frequency: Transmission frequency 9.6kHz

4.4.4.2 Output power: 5W

4.4.5 Basic parameters of routing receiver:

4.4.6. Input frequency: 9.6kHz

4.6.7 Detection routing error: ± 2cm

4.6.8. Detection depth error: ± 5cm.

4.6.9 LCD display: High brightness true color screen with 320 x 240 pixels, suitable for outdoor use.

4.5、Insulation resistance testing unit

4.5.1. Output voltage: 500V, 1000V, 2500V, 5000V.

4.5.2. It has functions such as absorption ratio, polarization index, rapid testing, and automatic insulation testing.

4.5.3. It has an automatic discharge function and a discharge speed block.

4.5.4. It has protection functions such as short circuit, overload, and undervoltage of overcurrent batteries.

4.5.5. Automatic shutdown when standby time reaches 10 minutes.

4.5.6. Power supply: adapter input: AC220V, 50Hz, output: DC16.8V.

4.6、Ultra quiet intelligent fixer section

4.6.1. Sensor dynamic range: sound channel>104dB, magnetic field channel>110 dB. Sensor frequency range: 100 Hz --1500 Hz

4.6.2. The amplification factor of the impact discharge sound is greater than 90dB, and the upper limit of the impact discharge volume is 84dB (A), which can be turned on or off

4.6.3. Wave setting: unfiltered 100 Hz --1500 Hz

4.6.4. Low pass filtering: 100Hz -- -400 Hz Band pass filtering: 150Hz -- -600 Hz High pass filtering: 200Hz -- -1500 Hz

4.6.5 LCD display: High brightness true color screen with 320 x 240 pixels suitable for outdoor use.

4.6.6. Continuous working hours on site: Powered by lithium batteries, convenient for on-site use.
