Configuration
1. Whole instrument controlled by high speed SCM, high automatic degree and simple operation.
2. The instrument adopts advanced power supply technology, with multiple current position, test range is wide, suitable for testing DC resistance of large and medium size transformer.
3. Has a complete circuit protection, reliable.
4.Discharge alarm, discharge indicator clear, reduces misuse.
5. Quick response speed, can be directly converted to load tap switch at measuring state, the instrument automatically refresh data.
6.Intelligent power management technology, instrument is always working at minimum power state, effective energy saving, reduce heat.
7.320 x240 matrix of ultra small pixel 65Ktrue color LCD.
8.With calendar clock and power storage, can store 1000 groups data, can be check at any time
9.With RS232 and USB interface, computer communications and U disk storage.
Technical Data
1. Output current：<5mA、40mA、200mA、1A、3A、10A
2. Resolution：0.1μΩ
Range： 0.5mΩ～0.2Ω （10A）
1mΩ-3Ω （3A）
5mΩ-6Ω (1A)
100mΩ-40Ω (200mA)
1Ω-200Ω （40mA）
100Ω-20KΩ （<5mA）
3. Accuracy：±(0.2%+2 Readings)
4. Operating temperature：0~40℃
5. Ambient humidity：≤90%RH，(non condensed)
6. size: 425*210*285 mm.
7. Instrument weight :11kg
Huazheng HZ-3110B Transformer DC Resistance Tester Winding Resistance Measurement DC Resistance Test Machine Winding DC Resistance Testing Device
HuaZheng Electric HZ-3310C Transformer DC Resistance Tester
Huazheng HZ-3340D DC Resistance Test Instrument
Huazheng Electric HZ-3320B 20A Power Transformer Analysis Measuring Device Transformer Winding Resistance Test Machine
Huazheng Electric HZ-3310B Transformer DC Resistance Tester Portable Transformer dc Resistance Tester Winding Resistance Tester For Transformer
Huazheng Electric HZ-3150A DC Resistance Tester Winding Resistance Measurement 50A Power Transformer Analysis Measuring Device
Huazheng Electric HZ-3110-I Handheld DC Resistance Tester DC Resistance Test Machine Full-automatic DC Resistance Tester
Huazheng Electric HZ-3310D DC Resistance Test Instrument DC Winding Resistance Testing Machine Transformer Winding Resistance Test Machine
Huazheng HZ-3320D DC Resistance Test Instrument DC Winding Resistance Testing Machine Three Phase Transformer DC Winding Resistance Tester

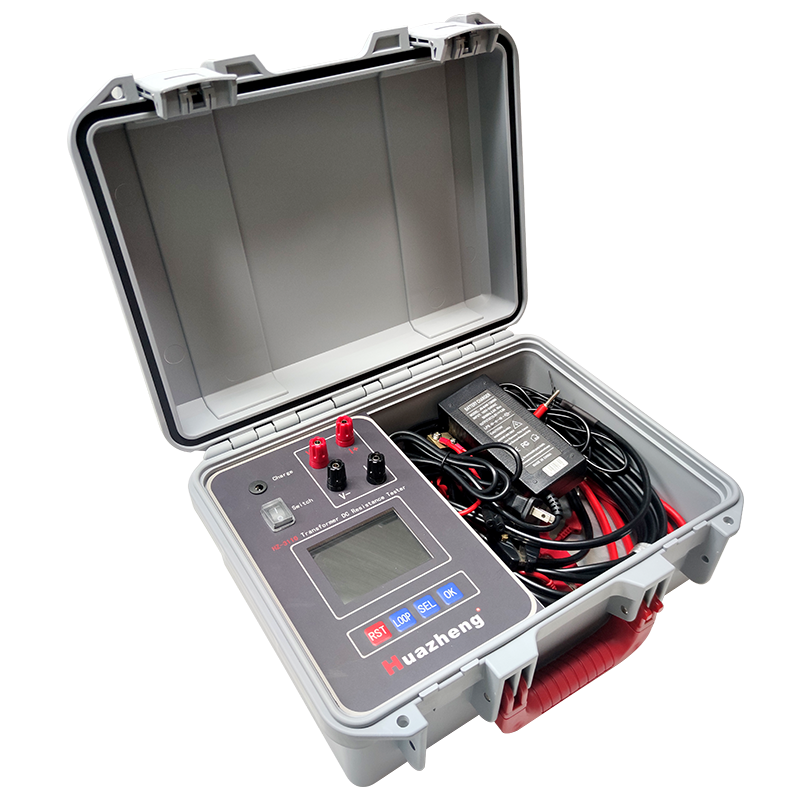

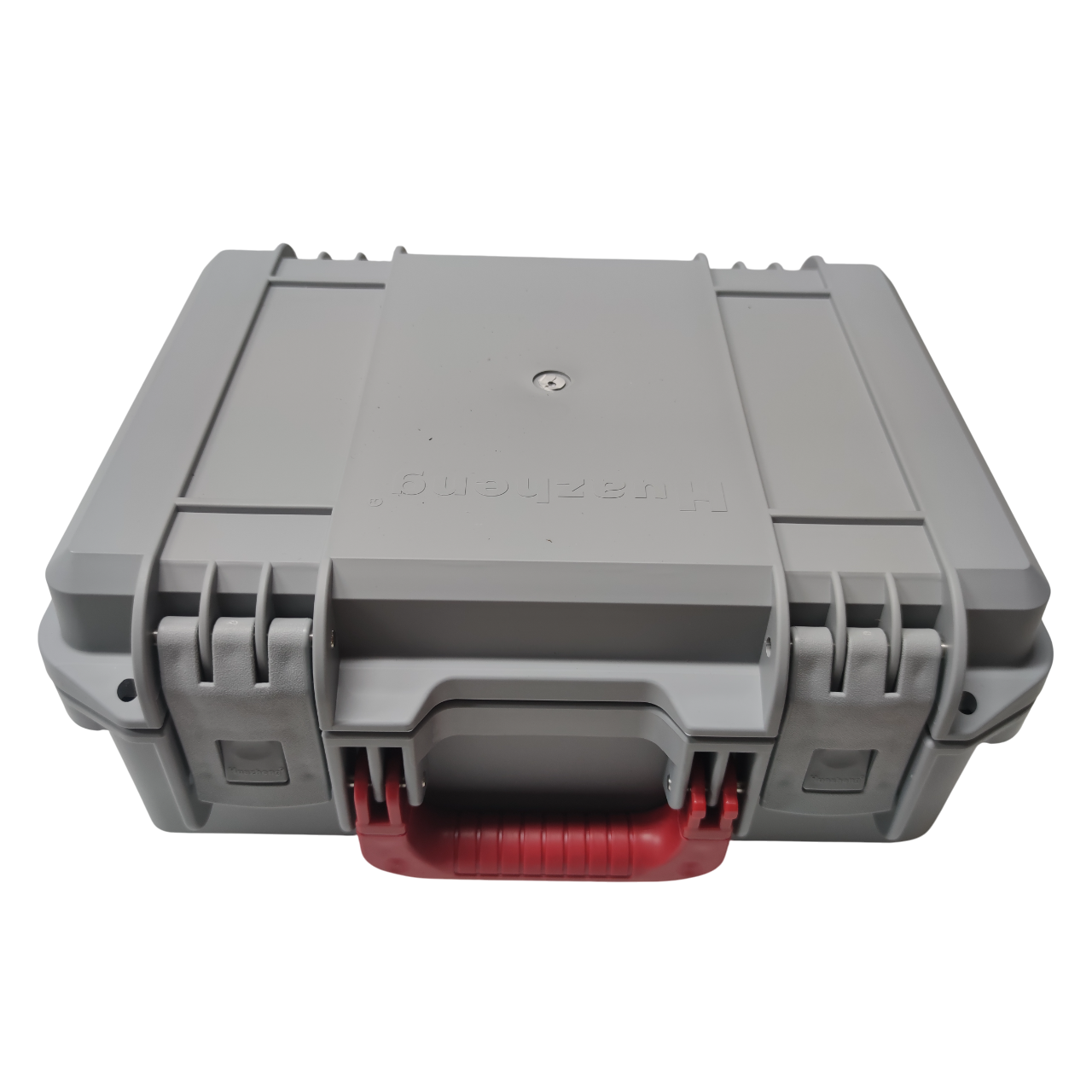

Huazheng HZ-3110 transformer dc winding resistance tester portable winding resistance test of transformer winding resistance meter
