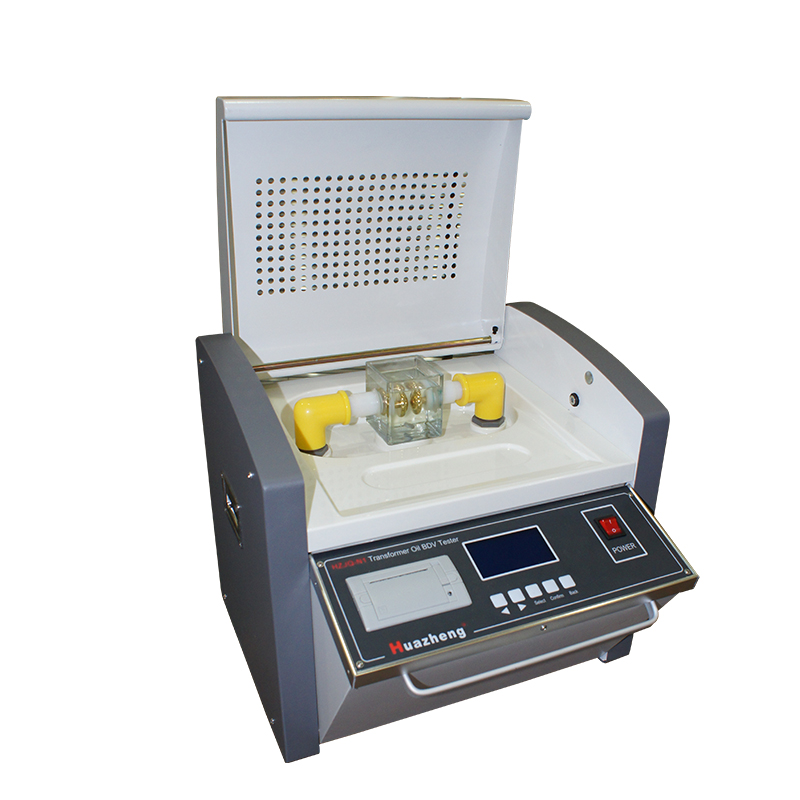

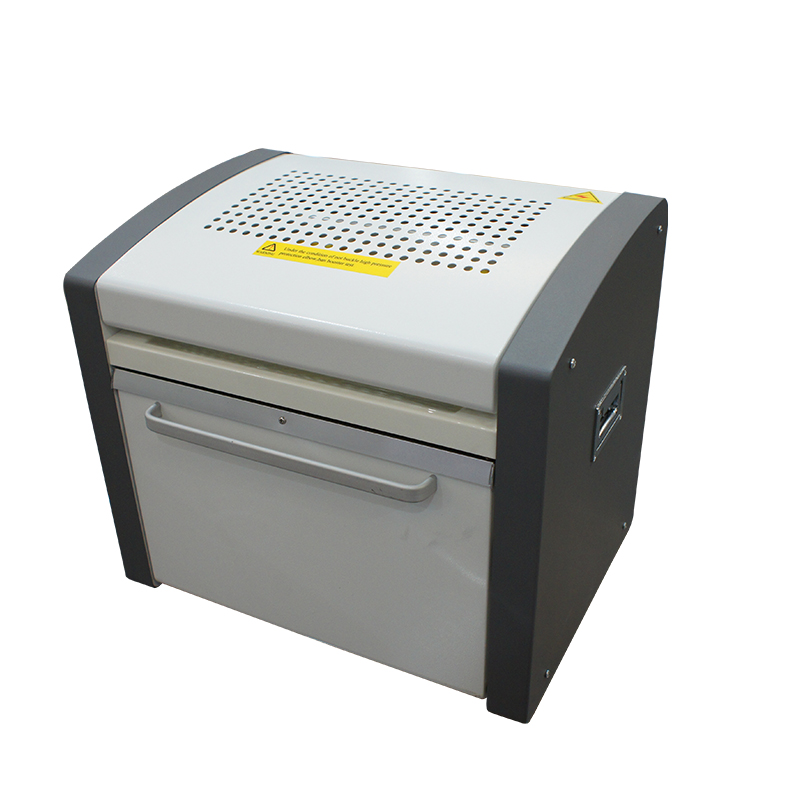

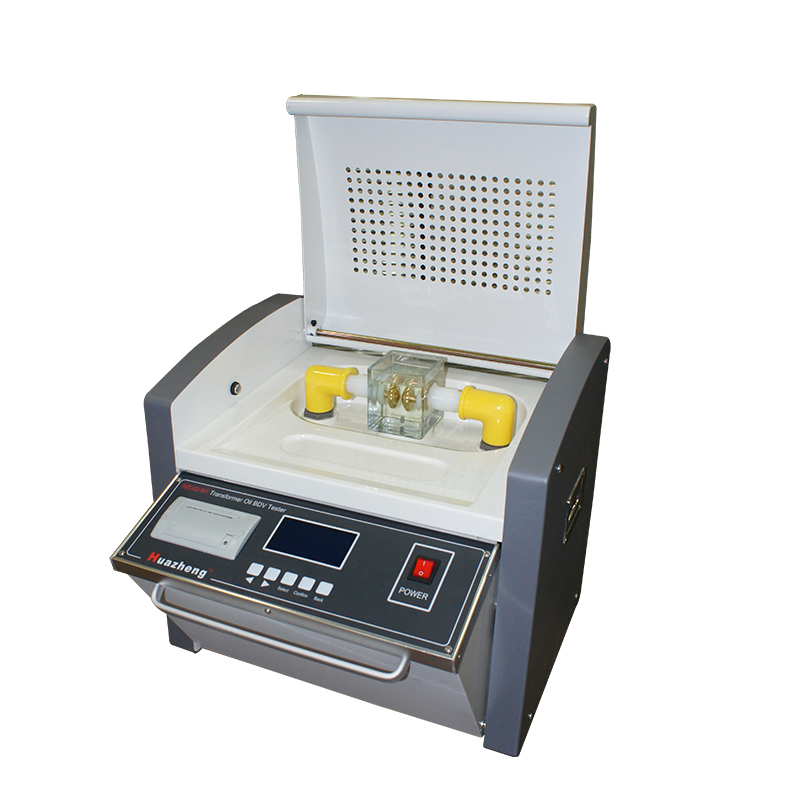

HZJQ-N1 insulating oil single cup dielectric strength tester transformer oil bdv test device dielectric oil bdv tester
HZJQ-N1 insulating oil single cup dielectric strength tester transformer oil bdv test device dielectric oil bdv tester
Contact us
HZJQ-N1 insulating oil single cup dielectric strength tester transformer oil bdv test device dielectric oil bdv tester
HZJQ-N1 insulating oil single cup dielectric strength tester transformer oil bdv test device dielectric oil bdv tester
HZJQ-N1 insulating oil single cup dielectric strength tester transformer oil bdv test device dielectric oil bdv tester
HZJQ-N1 insulating oil single cup dielectric strength tester transformer oil bdv test device dielectric oil bdv tester

I. Overview

Many power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment whose internal insulation are mostly oil-filled insulation type, and therefore, test on insulating oil dielectric strength is common and necessary. To meet the needs of the market, we have developed and produced a series of insulating oil dielectric strength testers according to national standard GB/T507-2002, industry standard DL429.9-91 and the latest Electric Power Industry Standard DL/T846.7-2004 by ourselves. This instrument, by using a single-chip microcomputer as the core, can operate in full automation with high accuracy, greatly improving work efficiency and reducing the labor intensity of workers. Moreover, it is small in size and convenient to carry.

II. Key Function And Feature

1. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 080KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations)

2. Display by large-screen LCD and prompt by English menu.

3. The instrument operation is simple. The machine will automatically complete the withstand voltage test on one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 6 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.

4. Maintain power down. It can save 100 tested results and displaying current ambient temperature and humidity.

5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.

6. With overvoltage, over current, limiting protection, in order to ensure the safety of operators.

7. With a temperature measurement display function and system clock display.

8. Communicate with computer with a standard RS232 interface.(Optional)

III. Major Technical Indicators

1Output voltage: 080KV (optional)

2Voltage distortion rate: 3%

3Voltage raising speed: 0.55KV/S (adjustable)

4Standing time: 15min (adjustable)

5Boosting interval: 5 min (adjustable)

6Boosting frequency: 16 time(s) (optional)

7Booster capacity: 1.5KVA

8Measuring accuracy: ±3

9Supply voltage: AC220V±10% 50Hz±1 Hz

10Power: 200W

11Applicable temperature: 0℃45℃

12Applicable humidity: 75%RH

13Overall dimension: 465×385×425
