I.Overview

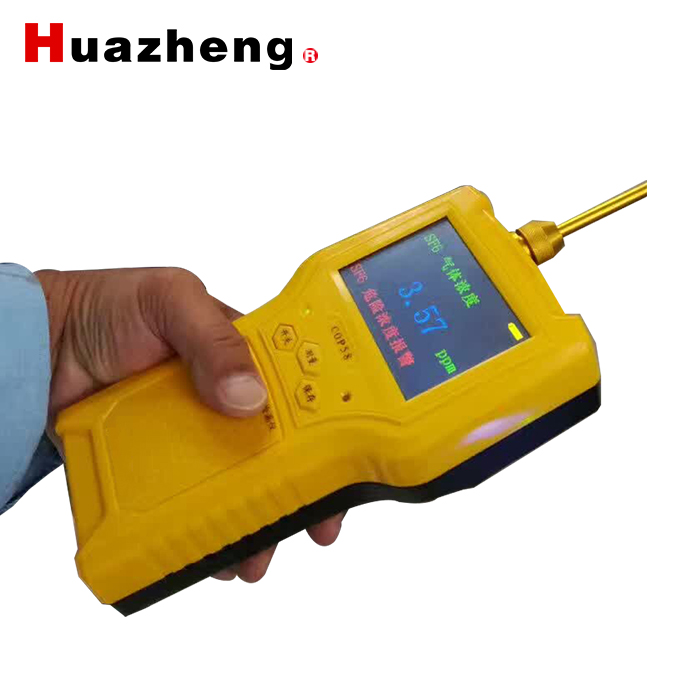

The Huazheng Electric HZCOP58 SF6 infrared quantitative detector is a new generation product for measuring SF6 gas leakage. It adopts the original imported sensor of German smart GAS, and the principle of dual-beam dual-wavelength non-dispersive infrared absorption spectroscopy (NDIR). High-speed embedded MCU, complete software and hardware design, greatly improve the operation stability and detection accuracy, can quickly and accurately quantitatively detect the leakage points of SF6 circuit breakers and GIS, and also have basic functions such as data storage and query .
This instrument is very suitable for power supply departments, installation and maintenance units and power test institutes. It is also very suitable for SF6 high voltage switch factory as a supporting instrument for SF6 electrical equipment and export products, thereby improving the overall product level.
II.Main Specifications
(1) Resolution: 1ppm (high range type) 0.01ppm (high precision type)
(2) Detection range: 0~1000ppm (high range type) 0~50ppm (high precision type)
(3) Response time: <3 seconds
(4) Recovery time: <5 seconds
(5) Quotation error: ≤±2%[0~1000] ppm ≤±10%[1000~5000] ppm (high range type)
≤±2%[0~50] ppm ≤±10%[50~300] ppm (high precision type)
(6) Repeat error: ≤2%
(7) Display mode: 3.5-inch color touch screen display
(8) Detection length: straight rod type 130mm, plastic hose can be added at the front end of the air inlet to extend
(9) Continuous working time: ≥8 hours
(10) Instrument power supply: rechargeable four-cell lithium polymer battery, DC8.4V
(11) Use environment: temperature: -10℃~50℃
Relative humidity: ≤95% without condensation
(12) Weight of the whole machine: 0.7 kg
(13) Equipment size: length×width×height=330mm×110mm×70mm

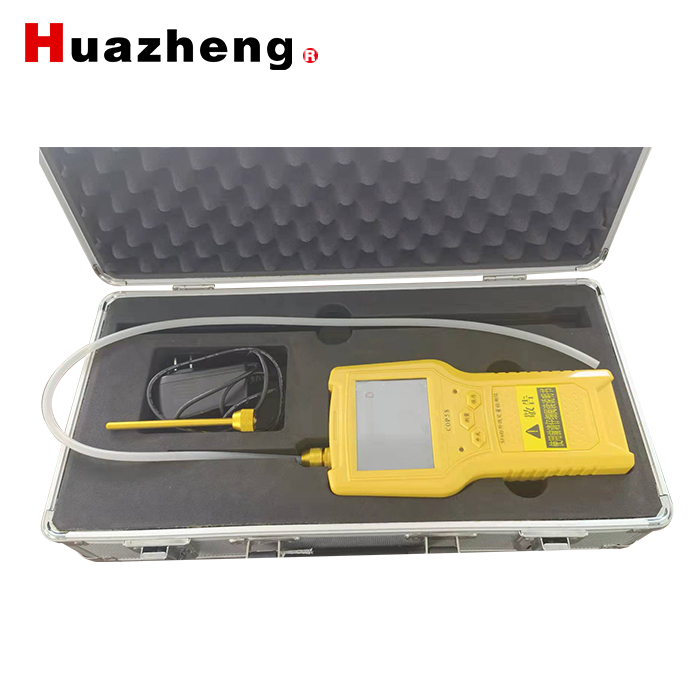

(14) Aluminum alloy box size: length×width×height=450mm×230mm×130mm
III.Product features
The first domestic imported sensor that uses dual-beam dual-wavelength non-dispersive infrared absorption spectroscopy (NDIR) technology to replace imported infrared detectors, which improves the reliability of SF6 leak detection results and the accuracy of quantitative leak detection. It can be switched on and off in SF6. Detect the leakage of SF6 within the range of leakage rate
It can quantitatively detect the concentration of trace SF6 gas in ambient air
It can accurately locate the gas leakage point of SF6 gas equipment
It can quantitatively detect the SF6 concentration content in the surrounding air from the leakage and diffusion of SF6 gas equipment
It can quantitatively detect the leakage amount and leakage rate of SF6 gas equipment
Small size, light weight, with anti-off wrist strap, can be operated with one hand
The display is intuitive, using a color touch screen, with simple and intuitive effects
Sound and light alarm, two levels of alarm values can be set, when SF6 exceeds the alarm value, the instrument will sound and light alarm
With on-site anti-jamming special program and data protection function
8000 sets of test data can be saved inside
Rechargeable four-cell lithium polymer battery, reliable explosion-proof, long use time, can be used continuously for 8 hours at a time, suitable for on-site, SF6 high-voltage switch factory and research institute use.
With advanced power management system, automatic standby
Compact structure, beautiful appearance, concise content, simple operation
