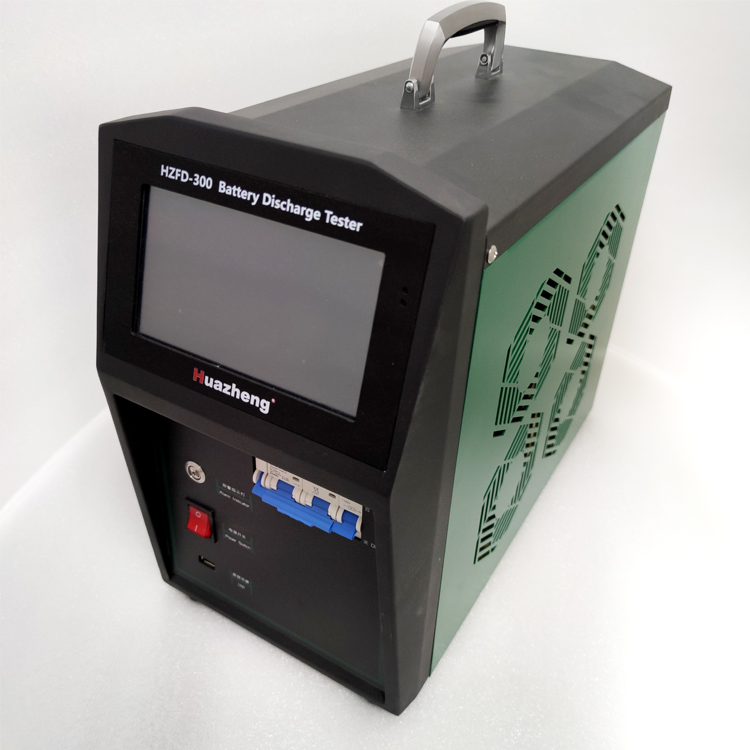

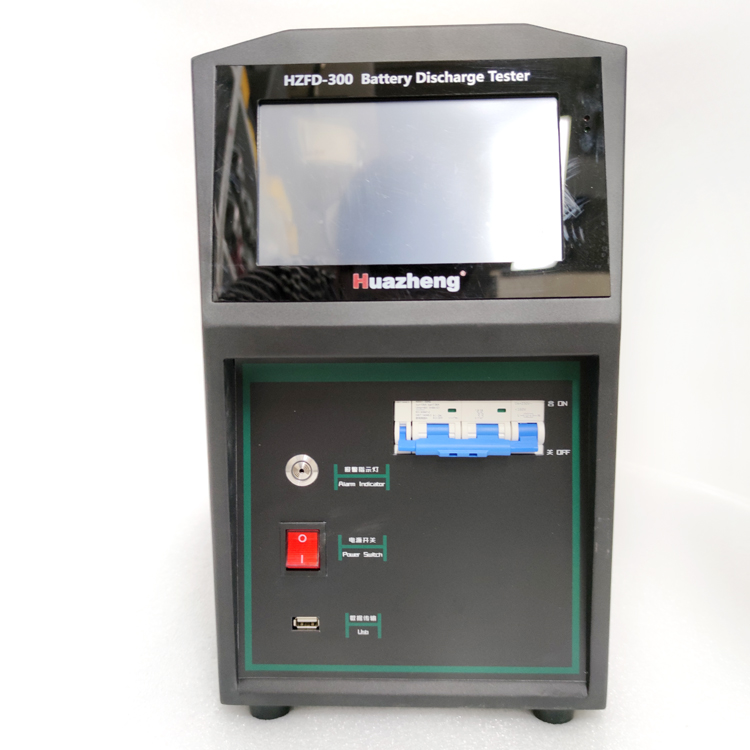

HZFD-300 Battery Discharge Tester is specially designed for checking discharge test of battery packs (24V, 48V, 110V, 220V), remaining capacity test of battery packs, daily maintenance of batteries and checking the load capacity of DC power supplies. According to the discharge characteristics of lead-acid battery and lithium battery, the tester can monitor the battery voltage, discharge current, discharge time, discharge capacity and other parameters in the discharge process in real time. The instrument adopts embedded operating system to complete the whole discharge process automatically and realize intelligence completely. It can generate a variety of curves, column charts, reports, etc. that directly reflect the performance of the battery pack, and can be enlarged, queried, and printed. The battery performance can be analyzed to make battery pack maintenance and management easier and more scientific, thus extending the service life of the battery pack. The power consumption component adopts the new PTC, which is small in size, light in weight and easy to move. The whole machine is controlled by microprocessor, LCD display, Chinese menu. It can be widely used in various industries such as communication, electric power, tower, battery manufacturers, new energy vehicle enterprises, railway, subway, petrochemical and so on. With the advantages of simple operation and safe discharge, it is an ideal test tool for DC system operation and maintenance test.

Battery Discharge Tester=Full Set Capacity Test+Constant Current Discharge+Constant Power+Wireless Unit Inspection (optional)

Product Model

DC220V System

Voltage Monitoring Range

0-300V

Discharge Constant Current Range

176V-264V

Discharge Current

176V-264V/0-50 Full-scale

Functional Characteristics of Instrument

Display Function

7inch LCD touch screen,resolution 1024x800

Voltage Measurement Accuracy

±0.5%FS+0.1V

Current Measurement Accuracy

±1%FS+0.1A Maximum range 100A

Discharge Current Display Accuracy

0.1A

Discharge Current Display Accuracy

Built-in:16Gbit FLASH;External 16G storage

Data Communication

RS485*3;USB*1

Working Mode

Constant discharge, constant power discharge, parallel/slave control

Protection Performance (LCD Alert + Buzzer Alarm)

Host Protection Function

Over temperature, over current, current out of control trigger shutdown protection

Reverse Connection Protection Function

Acoustic and optical alarm warning of polarity connection reverse

Exception Protection

The power cable or main cable is powered off

Overtemperature Protection

Built-in temperature sensor probe, if the temperature exceeds 75℃, the device automatically stops discharging

Scram Protection

External circuit breaker for emergency shutdown protection

Working Environment

Heat Dissipation Mode

Forced air cooling

Temperature

Operating temperature range:-5~50℃ Storage temperature:-40~70℃

Humidity

Relative humidity:0~90%(40±2℃)

Altitude

Rated altitude ≤4000 m

                                        Working Power Supply

Voltage

Single-phase three-wire system : 220V AC(–20%~+30%),Frequency :45~65Hz;

Withstand Voltage Test

Input - Chassis: 2200Vdc 1min

Input - Chassis: 2200Vdc 1min

Output - Chassis: 700Vdc 1min

Security

Conform to EN610950

Instrument Dimensions

Main Engine Size(mm)

Instrument dimensions(483mm*225mm*390mm)

Instrument weight

18KG

Remark

This equipment with moisture-proof aluminum alloy rod box, if you need other voltage level and current level equipment can consult our company.
