I.Introduction

The Test Transformer calls the booster, it is the basic test equipment used by the power station, supplying and distributing the electrical power system and the scientific research unit. Which used in the insulated intension test on all kinds of electrical products, electrical equipments and insulated materials, testing the insulated level of products, discovering the insulated objection of quizzee, scaling the capacity burdened voltage.

II.Structure

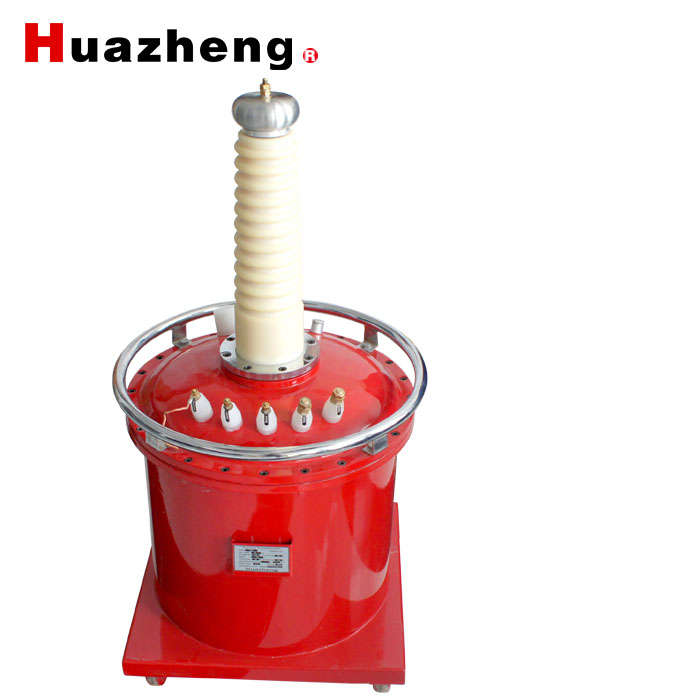

They make up of the high quality cold rolling silicon steel piece by HZQ alternating current test transformer, HZQ-JZ alternating and direct current amphibious light high voltage test transformer. The winding is the concentric pagoda  and multilayer cylindrical type, low-voltage winding in inner, high-voltage winding in outside; Outer cover is portable which has characteristics, such as volume smallness, weight light, the shape prettiness and move convenience and so on.



III.Principle of Work

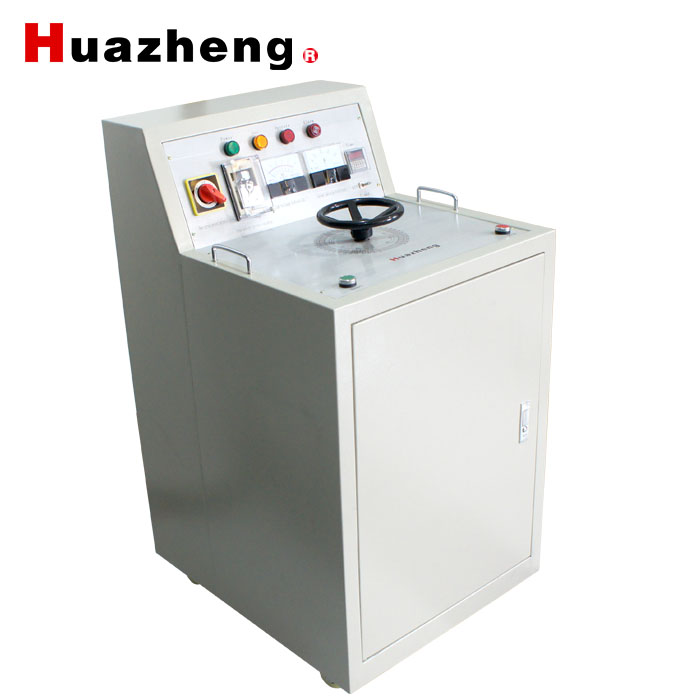

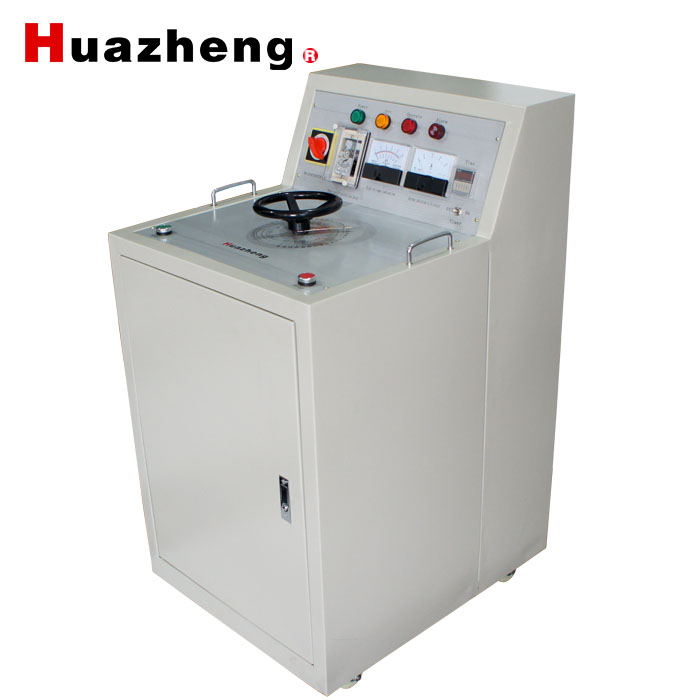

Connecting the control unit (it is the supplementary equipment of test transformer, detailed see the explaining book) with work frequency 230V (above 10KVA with 400V), adjusting 0-230V/400V voltage input to HZQ (HZQ-JZ) test transformer primary winding through autotransformer. According to the principle of electromagnetic influence, the secondary (high voltage) winding may gain the same multiple voltage value than the primary winding with the circle rated that is the high frequency voltage of work frequency. It can obtain the direct current high frequency voltage after commuted by high frequency voltage silicon stack and filtrated by capacitor, among whose amplitude value is the 2 times value of work frequency.

This series product divides into three kinds: the alternating current is named HZQ, the alternating and direct current is named as HZQ-JZ, meanwhile, may connecting HZQ, HZQ-JZ with 230V switch to form series excitation transformer.

IV.Technical Parameters

1Technical parameters of HZQ series alternating current test transformers

Model

CapacityKVA

High Frequency Voltage

Output Voltage

KV

High Frequency

Voltage

Output

CurrentmA)

Low Frequency Voltage input

Ratio

Tempera- ture(℃)

raised/

30 minute


V

A


HZQ-1.5

1.5

50

30

200

7.5

500

10


HZQ -3

3

50

60

200

15

500

10


HZQ -5

5

50

100

200

25

500

10


HZQ -10

10

50

200

230/400

50/26

500

10


HZQ -20

20

50

400

380

53

500

10


HZQ-30

30

50

600

380

79

500

10


HZQ -40

40

50

800

380

105

500

10


HZQ -50

50

50

1000

380

132

500

10


HZQ-5

5

100

50

200

25

1000

10


HZQ -10

10

100

100

200/380

50/26

1000

10


HZQ -20

20

100

200

380

53

1000

10


HZQ -30

30

100

300

380

79

1000

10


HZQ-40

40

10

400

380

105

1000

10


HZQ-50

50

100

500

380

132

1000

10


HZQ-100

100

100

100

500

263

1000

10


HZQ-150

150

100

1500

500

300

1000

10


HZQ-200

200

100

2000

500

400

1000

10


HZQ-250

250

100

2500

380

500

1000

10


HZQ-20

20

150

133

380

53

1500

10


HZQ-30

30

150

200

380

79

1500

10


HZQ-50

50

150

333

380

132

1500

10


HZQ-100

100

150

666

500

263

1500

10


HZQ-150

150

150

1000

500

300

1500

10


HZQ-200

200

150

1333

500

400

1500

10


HZQ-250

250

150

1666

380

500

1500

10


HZQ-30

30

200

150

380

79

2000

10


HZQ-50

50

200

250

380

132

2000

10


HZQ-100

100

200

500

380

263

2000

10


HZQ-150

150

200

750

500

300

2000

10


HZQ-200

200

200

1000

500

400

2000

10


HZQ-250

250

200

1250

500

500

2500

10


HZQ-30

30

250

120

380

79

2500

10


HZQ-50

50

250

200

380

132

2500

10


HZQ-100

100

250

400

380

263

2500

10


HZQ-150

150

250

600

500

300

2500

10


HZQ-200

200

250

800

500

400

2500

10


HZQ-250

250

250

1000

500

500

2500

10


Note: 100KVA and the above input voltage may enhance to 3000V or proposed by the users.
