I.Features

The instrument can measure the single capacitance of a group of parallel capacitors (both single-phase capacitance and three-phase capacitance can be measured) without removing the wires use.

During the measurement, the instrument can display the measured capacitance value or inductance value, and can also display the measured voltage, current, frequency, impedance, phase angle and other data;

The instrument uses different frequency power output for testing, which greatly improves the anti-interference ability on site, and can test in high-intensity magnetic field without affecting the accuracy.

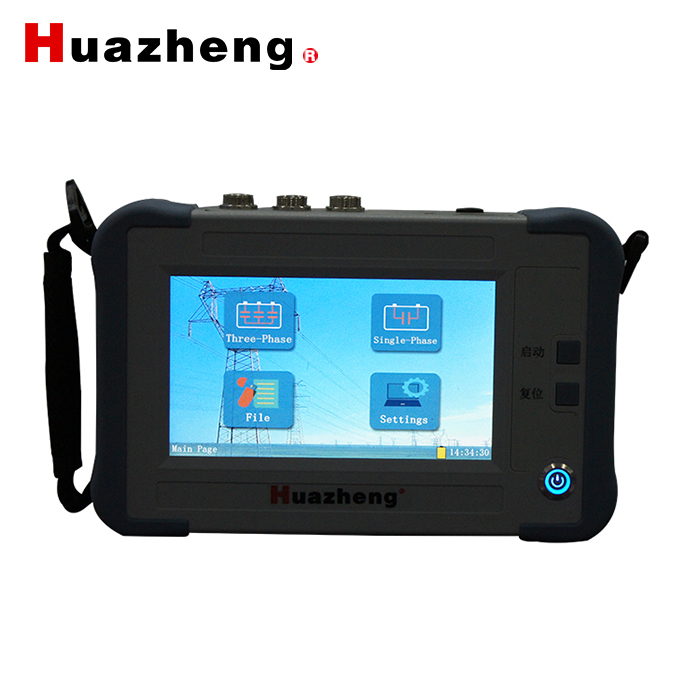

The instrument adopts a 7.0-inch 1024×600 high-definition screen, touch operation, clear observation during the day and night, Chinese menu prompts, easy to operate.

The instrument uses different frequency power output for testing, which greatly improves the anti-interference ability on site, and can test in high-intensity magnetic field without affecting the accuracy.

The instrument has built-in large-capacity non-volatile memory: it can store 500 sets of measurement data.

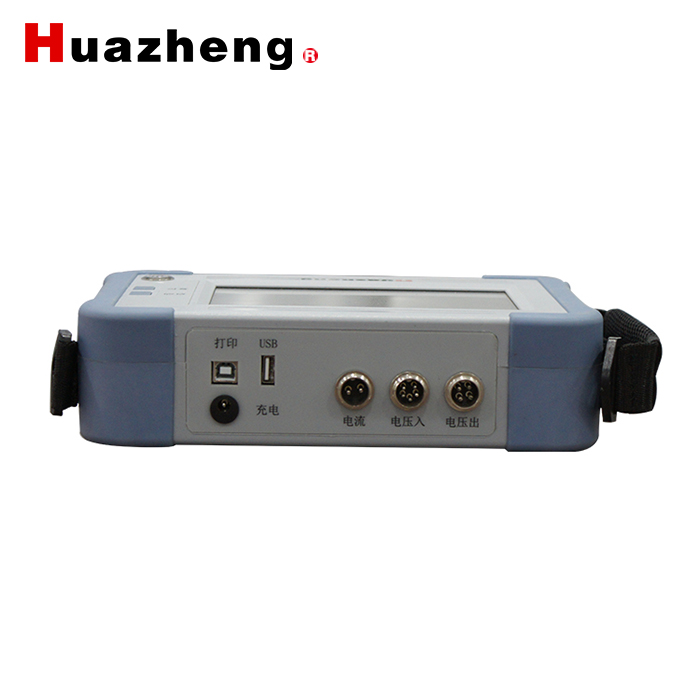

The instrument is equipped with a U disk interface, which can store any group of measurement data (limited by the capacity of the U disk).

The instrument has a built-in high-precision real-time clock function, which can perform date and time calibration.

The instrument has a built-in lithium battery power supply, which is convenient for outdoor use.

The instrument can be equipped with a printer to print the measurement data.

II.Technical indicators

1、Test voltage：

AC 100V ±10%，55Hz

AC 40V±10%，55Hz

AC 8V±10%，55Hz

AC 2V±10%， 55Hz

2、Measuring range and accuracy:

Measurable capacitance range: 0.1uF～10000uF ±（reading 1%+0.01uF）

Measurable inductance range: 50uH ～20H ±(reading 3%+0.05uH)

Measurable current range: 5mA ～2A ±(reading 3%+0.05mA)

Measurable resistance range: 20mΩ～20kΩ ±(reading 3%+0.1mΩ)

3、Length of test line: standard 5 meters, the length can be customized

4、Dimensions: Host 252*160*65(mm)   Box: 425*335*210(mm)

5、Weight：Host：2KG        Box：8KG

III.Conditions of use

Ambient temperature :-20℃～40℃

Ambient humidity :≤85%RH
