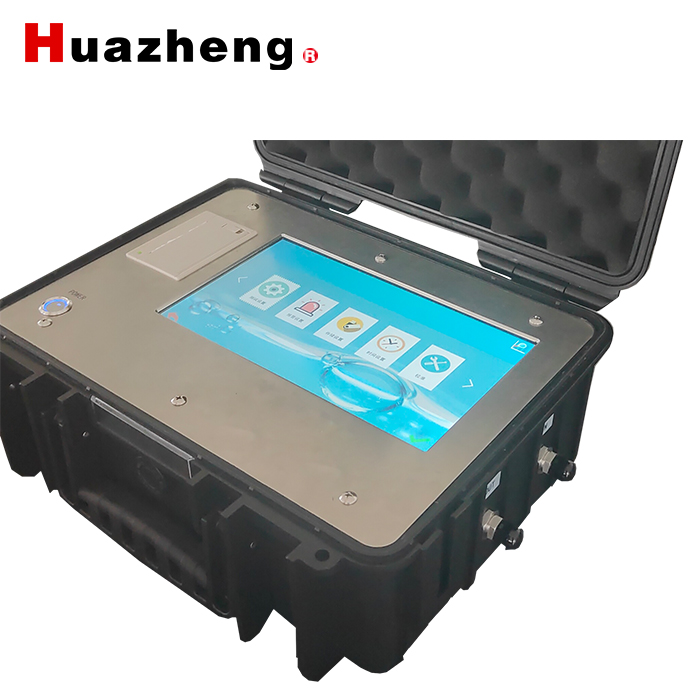

Huazheng Electric HZJS-1  Portable Particle Counter  portable oil particle counter

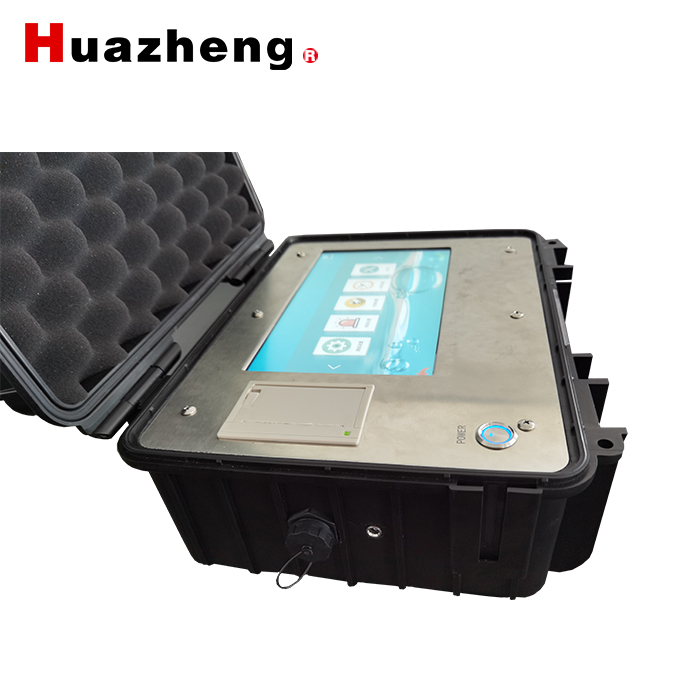

Huazheng Electric HZJS-1  Portable Particle Counter  portable oil particle counter

HZJS-1 Portable particle counter adopts photoresist (shading) counting principle designated by international Hydraulic Standards Committee, specially used for fast detection device of oil contamination level on site. It has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure and other harsh conditions. Built-in micro water sensor and temperature sensor can detect water content and oil temperature together with pollution degree detection. Suitable for transformer oil (insulation oil), hydraulic oil, lubricating oil, synthetic oil and other oil, can be widely used in aerospace, petrochemical, transportation ports, iron and steel metallurgy, automobile manufacturing and other fields.



I.Main feature

1. Using the principle of photoresist (shading) method, using high-precision laser sensor, small size, high precision and stable performance

2. Suitable for laboratory or field testing, and optional pressure reducing device for online high pressure measurement, real-time monitoring of particle contamination in oil systems

3. External pressure chamber can be connected to form positive/negative pressure to realize detection of high viscosity samples and sample degassing

4. Built-in data analysis system, which can display the real data of particle size of each channel and automatically determine the sample grade

5. The pipeline is made of 316L and PTFE material, which can meet the detection of various organic solvents and oils

6. With volume flushing and long flushing modes, it is convenient for users to use and maintain the equipment

7. Built-in ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution level standards

8. Built-in calibration function, can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards

9. Built-in data analysis system, which can automatically determine the sample grade according to the standard, with automatic data processing and printing functions

10. Built-in micro water sensor and temperature sensor

11. Bilingual in Chinese and English, one-key switch, with preset, input, modification, storage functions, convenient and fast operation

12. Large storage, you can choose to store in the instrument internal or external storage device

13. Embedded design, high-strength shell, easy to carry, suitable for all kinds of construction machinery



II.Technical indicators

Light source: semiconductor laser

Offline detection speed: 5-60mL/min

Offline detection of sample viscosity: ≤100cSt (optional pressure chamber when viscosity is high)

On-line detection pressure: 0.1-0.6Mpa (the maximum pressure of the optional decompression device can reach 42Mpa)

Particle size range: 0.8-600μm

Interface: USB interface, power interface

Data storage: Provide 1000 groups of data storage space, and support U disk storage

Sensitivity: 0.8μm or 4μm (c)

Limited coincidence error: 40000 grains/ml

Counting volume: 1-999ml

Counting accuracy: the error is less than ±10%

Protection class: IP67

Test interval: 1 second - 24 hours

Test sample temperature: 0-80℃

Water activity reference value: 0-1aw (±0.05aw)

Water content: 0-360ppm (±10%)

Working temperature: -20-60℃

Power supply: DC12V

Weight: 5.5kg

Screen size: 10.2 inches

Battery capacity: 8000mAh

Volume: 365×295×170mm
