I. General Specifications
Specifications | ||||
Output for Impulse Voltage | HZ2691-5000V HZ2691_5S4 HZ2691_5S2 100V~5000V 10V steps 5%±10V | HZ2691-3000V 100V~3000V 10V steps 5%±10V | ||
Inductance Test Range | More than 10μH | |||
Impulse Energy | Max 250mili-Joules | |||
LCD Display Resolution Waveform Display Area Contents | 800 x 480 dot-matrix LCD 650×250 dot-matrix(Support 1.5 times amplification display) Setup parameters, standard wave and test wave, comparison result, file information, etc. | |||
Sample Wave | Sampling rate: Max. 100MSPS, 10 grades(adjustable) Resolution: 8bits Memory depth: 6500 Bytes | |||
Input Impedance | 10MΩ | |||
Test Speed | Single-channel test: 15 times/sec Multi-channels test: 2 times/sec | |||
Averaging Rate | Number of test impulse | 1 to 32 averaging rate programmable | ||
Number of demagnetizing impulse | 0 to 8 averaging rate programmable | |||
Measurement Functio | Voltage, Time and Frequency | |||
Trigger Mode | Internal, Manual(Foot), External and Bus | |||
Comparison Method | Area Size Comparison Differential Zone Comparison Corona Discharge Comparison Differential Phase Comparison | |||
Area Size Measurement Accurac | ±1% | |||
Area Difference Measurement Accuracy | ±1% | |||
Comparison Output | PASS/FAIL display Beeper alarm and Light alarm | |||
Beep Mode | Long High, Long Low, Single Short, Double Short tone and OFF | |||
Memory | Built-in | 200 files | ||
USB disk | 500 files（standard waveforms and measurement settings） | |||
Interface | Handler（START,STOP,PASS,FAIL ,BUSY,EOC） RS232C USB Device（support USB TMC and USB CDC） USB Host（support FAT16 and FAT32， GIF） GPIB（option） | |||
Huazheng Electric HZHS-1094 Automatic Aviation Fuel Water Reaction Tester
Huazheng Electric HZ-SO12 Acid value and peroxide value detector
HZXF-107B Phase Voltammeter Phase Voltammeter For Testing Voltage And Current
Huazheng Electric HZ-1005F Automatic distillation range boiling range tester
Huazheng Electric HZDR-1A Dropping point softening point tester
Huazheng Electric HZDS-Y1 Particle Analyzer
Huazheng Electric HZZR-4985 Penetration tester (paraffin) Penetration Apparatus
HZCC14B Automatic Trace Carbon Residual Tester
HZ-1077 Drop Melting Point Tester of Petroleum Wax,Including Petrolatum
HZYD-3820 Oil smoke point Lamp
HZTL-1B Ferrography Tester
HZXRF-300X X-ray fluorescence spectrometer
Huazheng Electric HZSL-1 Grease Wide Temperature Dropping Point Tester
HZ-0253B Coulometric Chlorine Analyzer ASTM D5808 D5194 Micro Coulometric Titration Sulfur and Chlorine Analyzer Price
Huazheng Electric HZZD-100 Automatic Potentiometric Titrator High Quality ASTM D3227 Automatic Potentiometric Titrator
HZ-3026C Coolant Foam Propensity Tester ASTM D1881 Engine Coolant Bubble Propensity Meter

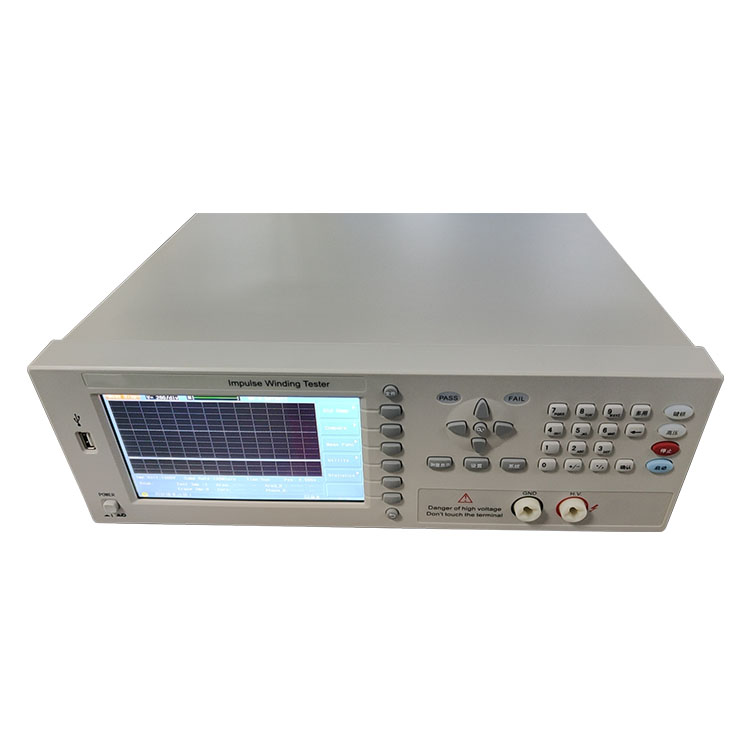

Huazheng Electric HZ2691 High Quality 5000v Pulse Coil Tester
