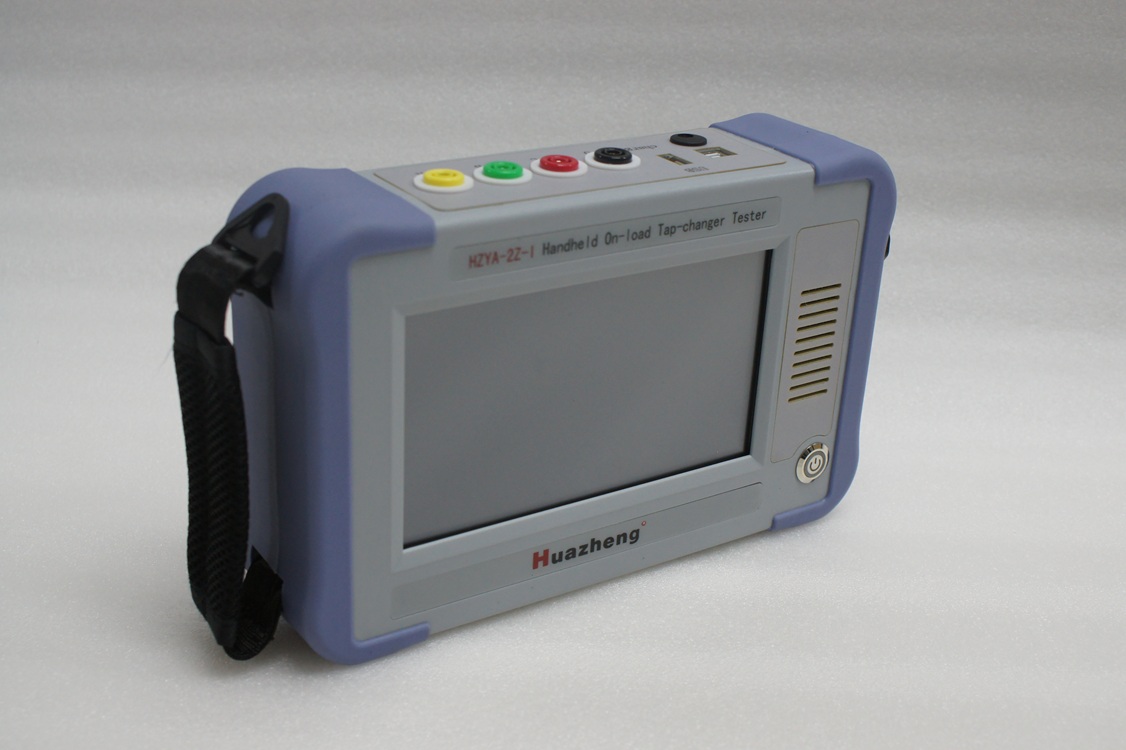

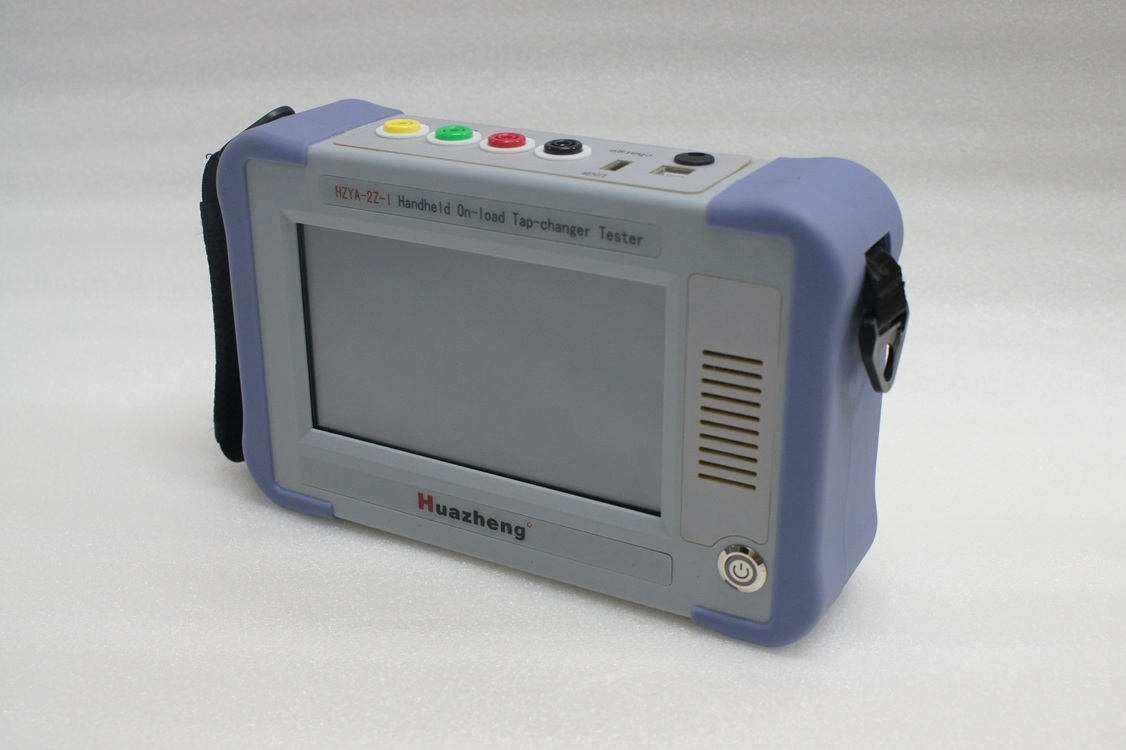

On-load tap changer is the only moving part connected with the transformer circuit, so the detection of on-load tap changer should be attracted more and more attention. In <<Electric power equipment handover and preventive test procedures>>, it is required to check the action sequence of on-load tap changer and measure the switching time. The instrument is mainly used for measuring the transformer on-load tap switch transition waveform, transition time, each instant transition resistance value, three-phase synchronization, etc.
The instrument is high intelligent degree .It is easy to operate with all Chinese menu prompts. The instrument is small in size, light in weight and strong in anti-interference ability, which greatly reduces the labor intensity of the field staff. It is an ideal instrument for ensuring safe production and improving product quality in power supply units and transformer manufacturing industry.
II.Main Functional Characteristics
1. The device can cost a large output current, the device weighs less
2.Test YN, Y, D type transformer, resistance value without conversion directly display
3.This device has winding and don’t has the measurement of winding .
4.The amplitude of resistance and time values can automatically adjusts according to the sampling values.
5.The device can display clearly in bright light with a seven-inch high brightness touch color LCD features , allowing users to switch between Chinese and English.
6.The device can automatically save 500 groups of data.
7.The instrument has a built-in lithium battery power supply, which is convenient for outdoor use.
8.The instrument can be connected with external printer to print measurement data, which is convenient for paperless office.(optional)
Output current 1.0A、0.5A、0.2A
Transition resistance：0.3Ω～20Ω(1.0A) 5Ω～40Ω(0.5A) 20Ω～100Ω(0.2A)
Transition time ：0～320ms
Open circuit voltage: 24V
Transition time ：±(0.1%±0.2ms)
Storage method :local storage

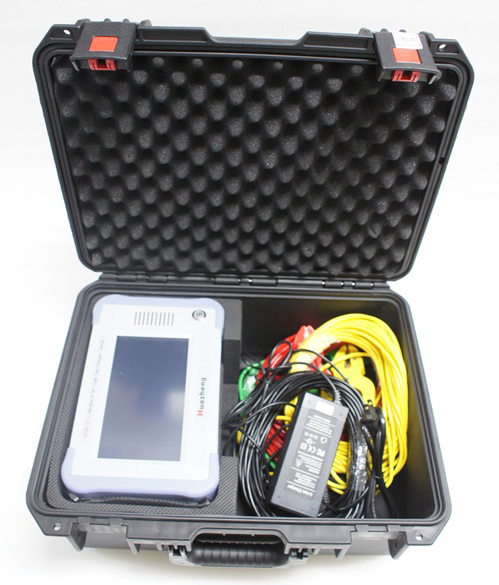

Dimensions: Main engine 252*160*65 （mm） Outer box 425*335*210（mm）
Instrument weight:Main engine2KG Outer box8KG
Test lead length：Standard 13 meters ,length can be customized
IV、Conditions of Use
Ambient temperature -10℃～50℃
Environment adaptation ≤85%RH
Working power Battery powered
Power frequency 50±1Hz
