In the realm of electrical engineering and maintenance, the quality of insulating oil is paramount for the safe and efficient operation of transformers and other electrical equipment. One of the essential tools used to assess the quality of insulating oil is the Oil BDV Tester, which stands for Breakdown Voltage Tester. This device plays a critical role in ensuring that the insulating oil used in electrical systems meets the required standards for performance and safety.

 Understanding Breakdown Voltage

Before delving into the specifics of the Oil BDV Tester, it is important to understand what breakdown voltage means. Breakdown voltage is the minimum voltage that causes a portion of an insulator to become electrically conductive. In the context of insulating oil, this is a crucial parameter because it indicates the oil's ability to withstand electrical stress without failing. A low breakdown voltage can lead to electrical failures, short circuits, and ultimately, catastrophic equipment failures.

The Role of the Oil BDV Tester

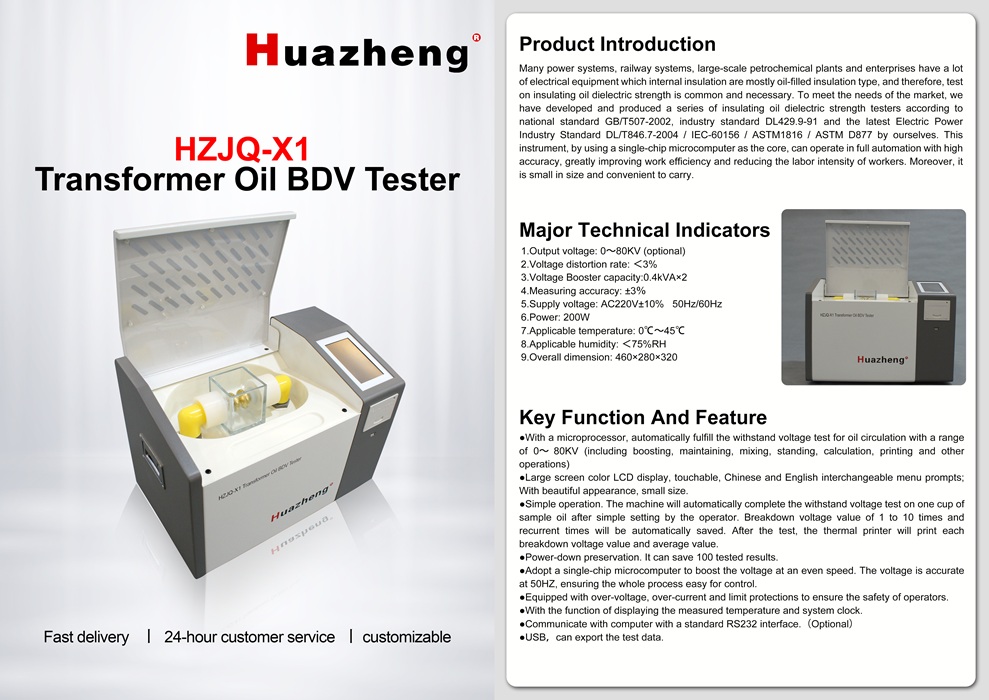

The Oil BDV Tester is designed to measure the breakdown voltage of insulating oil. It does this by applying a controlled voltage to a sample of the oil until the oil breaks down and conducts electricity. The tester typically consists of two electrodes submerged in the oil sample, and the voltage is gradually increased until a spark occurs between the electrodes. The voltage at which this breakdown occurs is recorded as the breakdown voltage.

Importance of Testing Insulating Oil

Regular testing of insulating oil using an Oil BDV Tester is essential for several reasons:

1. **Preventing Equipment Failure**: By monitoring the breakdown voltage of insulating oil, maintenance teams can identify potential issues before they lead to equipment failure. A decrease in breakdown voltage can indicate contamination or degradation of the oil, which can compromise the insulation properties.

2. **Ensuring Safety**: High-voltage electrical systems pose significant safety risks. By ensuring that the insulating oil has an adequate breakdown voltage, operators can minimize the risk of electrical accidents, protecting both personnel and equipment.

3. **Compliance with Standards**: Many industries have strict regulations regarding the quality of insulating oil. Regular testing with an Oil BDV Tester helps organizations comply with these standards, avoiding potential legal and financial repercussions.

4. **Extending Equipment Lifespan**: Proper maintenance of insulating oil can extend the lifespan of transformers and other electrical equipment. By using an Oil BDV Tester to monitor oil quality, organizations can make informed decisions about when to replace or treat the oil, thereby prolonging the life of their assets.

 How to Use an Oil BDV Tester

Using an Oil BDV Tester is a straightforward process, but it requires adherence to safety protocols and manufacturer guidelines. The general steps include:

1. **Sample Preparation**: Collect a sample of the insulating oil to be tested, ensuring that it is free from contaminants.

2. **Setting Up the Tester**: Place the electrodes in the oil sample according to the manufacturer's instructions. Ensure that the setup is secure and that safety measures are in place.

3. **Conducting the Test**: Gradually increase the voltage until breakdown occurs. Record the voltage at which the breakdown happens.

4. **Interpreting Results**: Compare the measured breakdown voltage against industry standards to determine the quality of the oil.

5. **Taking Action**: If the breakdown voltage is below acceptable levels, consider oil treatment or replacement to ensure the continued safe operation of the equipment.

The Oil BDV Tester is an indispensable tool in the maintenance of electrical systems. By measuring the breakdown voltage of insulating oil, it helps ensure the reliability, safety, and longevity of electrical equipment. Regular testing not only prevents failures but also supports compliance with industry standards, making it a critical component of any electrical maintenance program.
