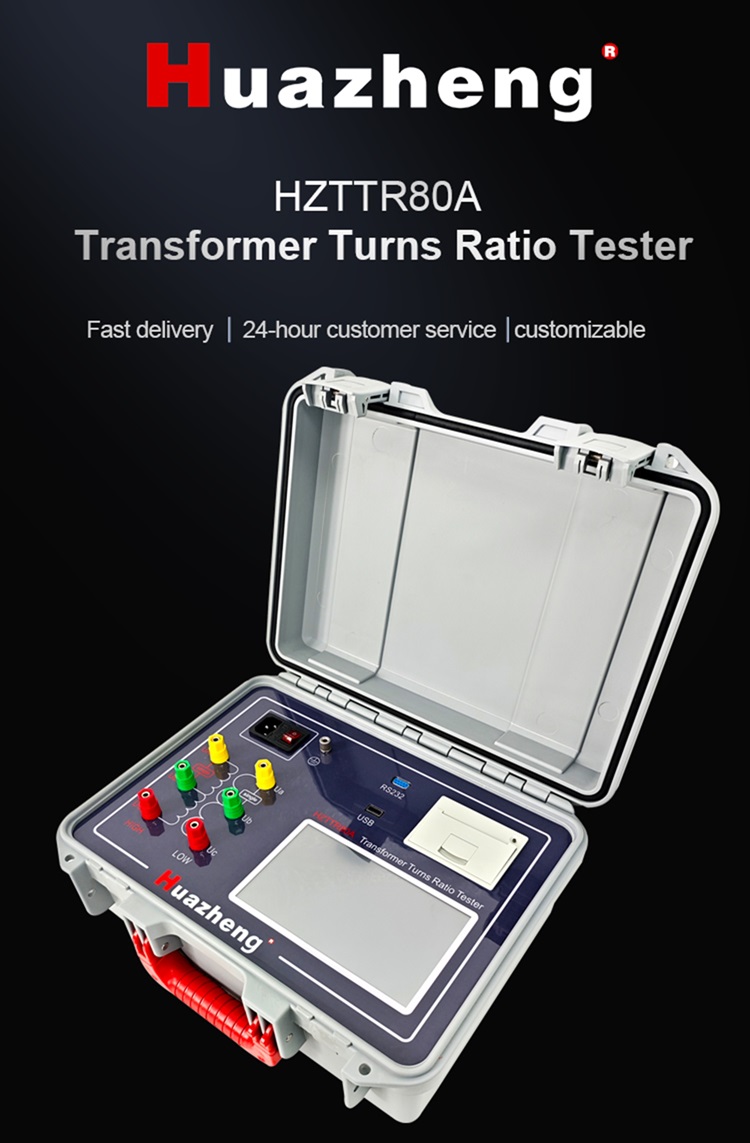

HZTTR80A Transformer Turns Ratio Tester Precision and Reliability for Electrical Testing
In the realm of electrical engineering, accurately determining the turn ratio of a transformer is crucial for ensuring system efficiency and safety. The HZTTR80A Transformer Turns Ratio Tester, manufactured by Huangzheng Electric, stands out as a top-tier solution for this essential task. This advanced device is designed to measure various parameters including turn ratio, voltage ratio, vector relationship, connection group, polarity, tap position, and excitation current. Its ability to test single-phase and three-phase transformers, both with and without taps, makes it a versatile tool for diverse applications.
The HZTTR80A offers a comprehensive range of features that cater to the needs of electrical professionals. With a focus on accuracy, this tester provides a ratio accuracy of ±0.1% to ±0.5% depending on the measurement range, ensuring reliable results. The device supports testing voltages of 5V and 80V, allowing for flexible testing scenarios. The HZTTR80A is equipped with a 7-inch high-definition color touchscreen display, making operation intuitive. The interface is designed for ease of use, with clear menus and settings. Additionally, the device can be controlled via a dedicated APP on Android devices, enabling remote operation and data management.
Built for both laboratory and field use, the tester is housed in a durable, shock-resistant, and waterproof case. This ensures that the device remains protected during transportation and use in harsh environments. Huangzheng Electric prioritizes safety, and the HZTTR80A includes essential safety features such as over-voltage protection and automatic arc extinguishing. The device also emphasizes proper grounding procedures to protect operators from electrical hazards.
The technical specifications of the HZTTR80A are impressive, with a testing range for turn ratio from 0.9 to 10000, current measurement up to 2000mA, and angle measurement from 0° to 360°. It operates on a maximum power of 50W, with an input voltage range of 85-264VAC, 47-63Hz. The device can function in environmental conditions ranging from -10°C to 40°C with a relative humidity of ≤85%. Its compact and portable design, with dimensions of 360x290x170mm for both the main unit and line box, makes it convenient for use in various settings.
The HZTTR80A is ideal for electrical utilities, substations, industrial plants, and any facility requiring precise transformer maintenance and testing. It is particularly valuable for engineers and technicians responsible for ensuring the optimal performance and safety of electrical systems. By choosing the HZTTR80A, you invest in a device that enhances testing efficiency while ensuring the highest standards of safety and reliability.
Conclusion
The HZTTR80A Transformer Turns Ratio Tester represents Huangzheng Electric's commitment to excellence in electrical testing equipment. Its combination of precision, versatility, and user-friendly design makes it an indispensable tool for professionals in the electrical engineering field. Visit our website at huazhengtestequipment.com to learn more about this exceptional product and explore our full range of electrical testing solutions.
