In the field of electrical engineering, ensuring the reliability and safety of electrical systems is paramount. The insulation resistance of electrical components and wiring is a critical indicator of their condition and performance. To address this essential testing requirement, Huangzheng Electric presents the HZJY-10K-I Insulation Resistance Tester, a sophisticated device designed to deliver accurate and efficient insulation resistance measurements.

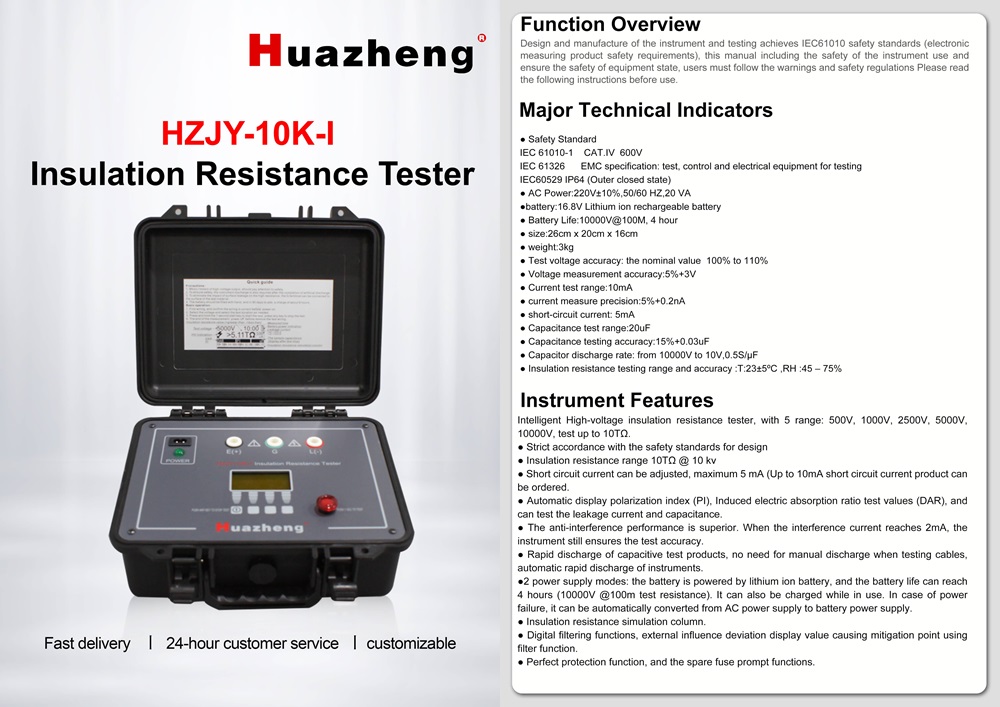

The HZJY-10K-I is an intelligent high-voltage insulation resistance tester offering five selectable voltage ranges: 500V, 1000V, 2500V, 5000V, and 10000V. This wide range enables it to test insulation resistance up to an impressive 10TΩ, making it suitable for a variety of applications, from low-voltage systems to high-voltage equipment. The tester features advanced capabilities including automatic polarization index (PI) and dielectric absorption ratio (DAR) measurements, as well as the ability to test leakage current and capacitance. Its superior anti-interference performance ensures accurate results even in challenging environments with interference currents up to 2mA.
Safety remains a top priority for Huangzheng Electric. The HZJY-10K-I Insulation Resistance Tester is designed and manufactured in compliance with IEC61010 safety standards, ensuring the safety of both the equipment and the user. It includes essential safety features such as over-voltage protection and automatic arc extinguishing. Before use, operators are advised to wear insulated gloves and avoid testing in flammable areas or on circuits exceeding AC/DC 600V. The device also emphasizes proper grounding procedures to protect users from electrical hazards.
The HZJY-10K-I Insulation Resistance Tester features a user-friendly design with a clear LCD display and intuitive operation buttons. It supports two power supply modes: a lithium-ion battery with a lifespan of up to 4 hours (at 10000V and 100M test resistance) and AC power. The battery can be charged while in use, and the device automatically switches to battery power in case of AC power failure. Additional features include an insulation resistance simulation column, digital filtering functions, and perfect protection functions with spare fuse prompts.
The technical specifications of the HZJY-10K-I Insulation Resistance Tester are impressive and comprehensive. It meets IEC 61010-1, CAT.IV 600V safety standards, IEC 61326 EMC specifications, and IEC60529 IP64 (outer closed state) requirements. It operates on 220V±10% AC power at 50/60Hz and weighs only 3kg, making it portable and convenient for both laboratory and field use. The device can function in temperatures ranging from -10°C to 40°C with a relative humidity of ≤85%.
The HZJY-10K-I Insulation Resistance Tester is ideal for electrical utilities, substations, industrial plants, and any facility requiring precise insulation resistance testing solutions. It is particularly valuable for engineers and technicians responsible for maintaining the safety and performance of electrical systems. By choosing the HZJY-10K-I Insulation Resistance Tester, you invest in a device that enhances testing efficiency while ensuring the highest standards of safety and reliability.
The HZJY-10K-I Insulation Resistance Tester represents Huangzheng Electric's commitment to excellence in electrical testing equipment. Its combination of precision, versatility, and user-friendly design makes it an indispensable tool for professionals in the electrical engineering field. Visit our website at huazhengtestequipment.com to learn more about this exceptional product and explore our full range of electrical testing solutions.
