Buyer Feedback---Huazheng DC Hipot Tester

Time: 2024-02-20 Author: 铧正 Click: 463 Time

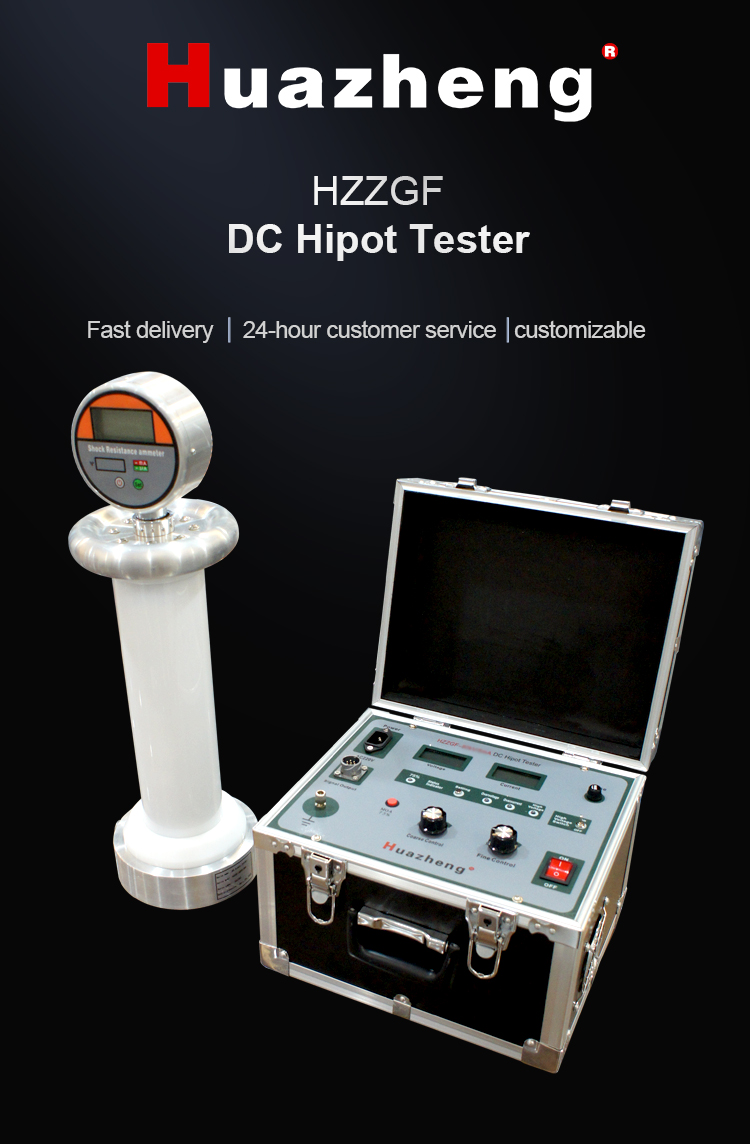

Huazheng Electric dc withstand voltage test set 120kv 5ma dc hipot tester


Technical Parameters





Voltage (KV)/mA

Current (mA)

Control Box

High-Voltage Unit


Rated Voltage

Size (mm)

Weight kg

Size (mm)

Weight kg

60/2-5

60KV

310 * 250 * 230

5kg

470 * 260 * 220

6kg

80/2-5

80KV

310 * 250 * 230

6kg

490*260*220

8kg

100/2-5

100KV

310 * 250 * 230

6kg

550*260*220

8kg

120/2-5

120KV

310 * 250 * 230

7kg

600 * 260 * 220

10kg

200/2-5

200KV

310 * 250 * 230

8kg

1000 * 280 * 270

20kg

300/2-5

300KV

310 * 250 * 230

9kg

1300 * 280 * 270

22kg

output polarity

Negative polarity, no-voltage start, linear continuous adjustment

working power supply

50HZ   AC220V±10%

voltage error

0.5%±2,minimum solution 0.1KV

current error

0.5%±2,minimum solution 0.1µA

ripple factor

better than 0.5%

voltage stability

Random flunctuation , grid change is 10% , the flunctuation <=0.5%

working manner

Interval working, less than 30 minutes under rated load

working condition

Temperature: 0-40℃, humidity: less than 90%

storage condition

Temperature: -10℃~40℃, humidity: less than 90%

altitude

Lower than 3000 m
