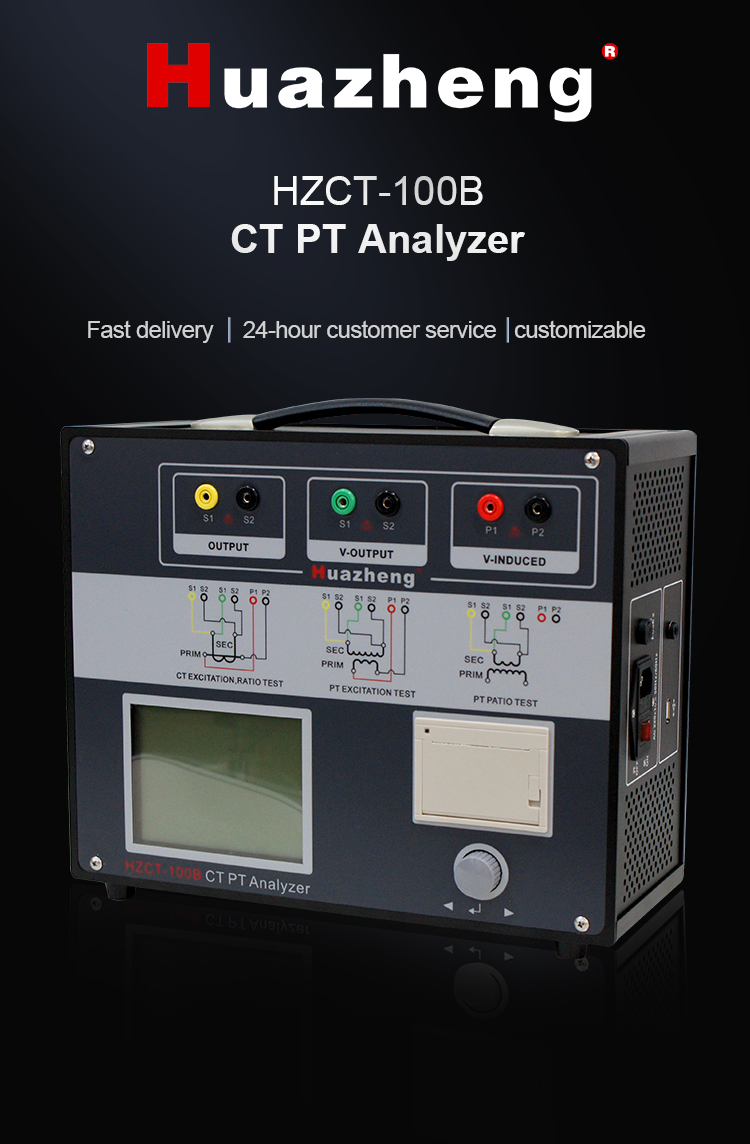

Buyer Feedback--Huazheng CT PT Analyzer

Time:2024-04-18 Hits:419

Technical Parameter

Usage

CT, PT

Output

0~180Vrms,12Arms,36A(peak value)

Voltage measurement accuracy

±0.1%

CT Ratio

Range

1~40000


accuracy

±0.05%

PT Ratio

Range

1~40000


accuracy

±0.05%

Phase test

accuracy

±2min


Resolution

0.5min

DC resistance

Range

0~300Ω


accuracy

0.2%±2mΩ

Burden

Range

0~1000VA


accuracy

0.2%±0.02VA

Power supply

AC220V±10%,50Hz

Environmental Conditions

  Operating temperature : -10οC~50οC ,Humidity :≤90%

Weight and Dimensions

Dimensions: 365 mm×290 mm×153mm,Weight<10kg
