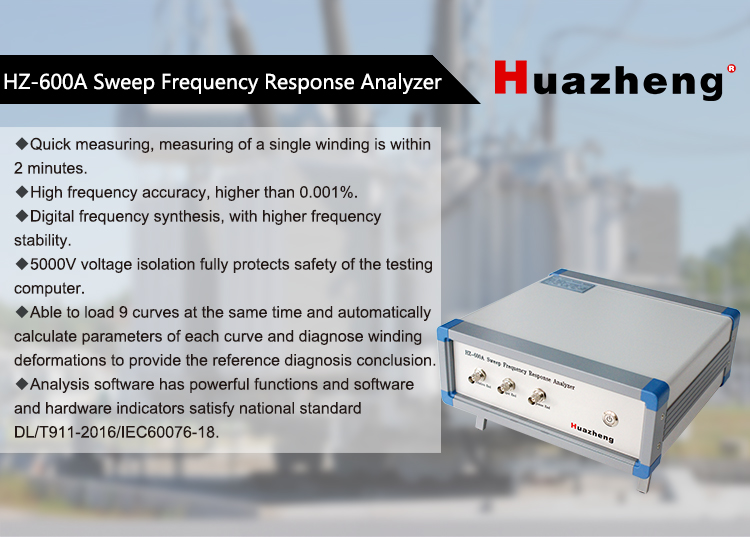

Buyer Feedback-HuaZheng Electric HZ-600A Sweep Frequency Response Analyzer

Time:2023-03-22 Hits:491


Main Technical Indicators

Measuring speed:

 1 min- 2 min for single-phase winding

Output voltage:

Vpp-25V, adjusting automatically in test

Output impedance:

50Ω

Input impedance:

1MΩ (the response channel is built with 50Ω matching resistance)

Frequency scan scope:

10Hz-2MHz (10Hz-25MHz, optional)

Frequency accuracy:

0.001%

Frequency scan manner:



 linear or logarithmic, frequency sacn interval and number of sweep points are freely settable

Curve display:

amplitude-frequency curve (phase-frequency curve, optional)

Width of measuring dynamic range:

-100dB~20dB

Supply voltage:

AC100-240V   0-400Hz

Tester weight:

only 3.6kg
