Buyer Feedback-Vlf Hipot Tester

Time:2023-01-19 Hits:208

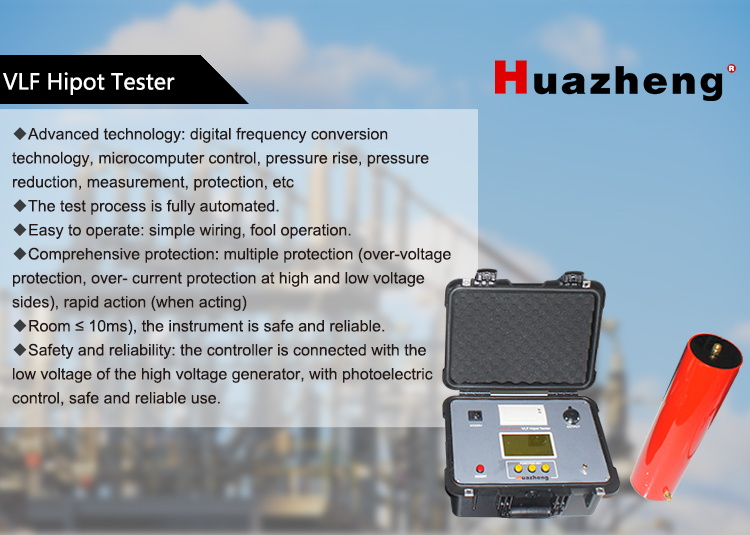

vlf ac hipot tester (1).jpg

Alternate Current VLF Electric Safety Hipot Tester Technical parameters:



ModelPeak voltageMeasuring rangeWeightPurpose
VLF-3030KV0.1Hz,≤1.1µF

Controller: 4 kg

Booster: 25 kg

Size: L*W*H

323*174*323

10KV and below voltage cable,

generator

0.05Hz,≤2.2µF
0.02Hz,≤5.5µF
VLF-5050KV0.1Hz,≤1.1µF

Controller: 6 kg

Booster: 45 kg

Size: L*W*H

357*210*365

15.75KV and below voltage cable,

generator

0.05Hz,≤2.2µF
0.02Hz,≤5.5µF
 VLF-60   60KV  0.1Hz,≤1.1µF

Controller: 6 kg

Booster: 50 kg

Size: L*W*H

357*220*370

18KVand below voltage cable,

generator

0.05Hz,≤2.2µF
0.02Hz,≤5.5µF
 VLF- 80   80KV  0.1Hz,≤1.1µF

Controller: 8 kg

Booster: 90 kg

Size: L*W*H

357*240*390

35KV and below voltage cable,

generator

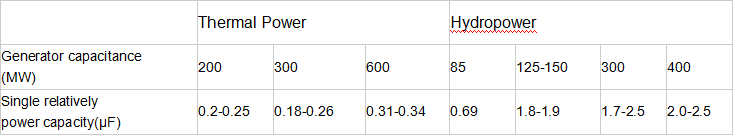

2.Single relatively power capacity of different Generator

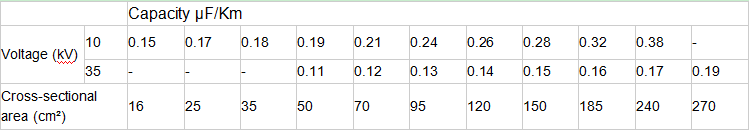

3.Power capacitance of single-core XLPE insulated cable (µF/km)





4.How to choose the suitable products for test


Please make sure that the capacitance of test products is below the instrument rated capacitance. The waveform will be influence if the capacitance of test products is too small and the instrument can not normally output when it below 0.05µF. 0.1µF capacitor in parallel to auxiliary output. Below is capacitance of some instrument for your reference.
